How Oscilloscope Works

what is an oscilloscope used for

An oscilloscope is a device for displaying varying voltage signals graphically, usually in the form of a calibrated diagram of multiple signals. After the waveform is displayed, its properties such as amplitude, frequency and so on can be analyzed. It uses the time-domain method of displaying changes in electrical signals that have passed through it. They are commonly known by different names, including CRO and DSO, which have evolved from measuring voltage changes over time based on events.

An oscilloscope is an essential lab instrument. This instrument is used for measuring voltage, current, frequency, and power. In this blog post we will discuss how oscilloscopes work and what they are used for today.

What is an oscilloscope?

How Oscilloscope Works

In school you probably made charts, and you probably saw them in the newspaper as well. These graphs often illustrate how the value of a quantity over time varies, such as a heart rate, the price of stock, or a nation’s exchange rate. Y-axis represents the quantity plotted vertically, and x-axis represents the period plotted horizontally. If you didn’t have an oscilloscope, you may find that charts like this take a long time to plot. You can feed oscilloscope signals from probes attached to electronic circuits, scientific instruments, or medical monitors to draw charts automatically.

What can we use oscilloscopes for?

It is possible to use an oscilloscope for observing signals in all sorts of ways. In electronics courses, oscilloscopes will be used to monitor the changes in circuit signals over time. They can also be used to troubleshoot TVs, radios, and much more. Coaxial cables are used to connect the probes of a typical oscilloscope to electric currents, but this does not mean oscilloscopes can only measure electricity. You can use an oscilloscope to measure almost anything when you attach a transducer (that converts one type of energy into another). Among the various types of transducers that can be used to study sound signals with an oscilloscope are microphones (which convert sound energy to an electrical signal), thermocouples (which measure temperature changes), or piezoelectric transducers (which generate electricity when squeezed).

What makes oscilloscopes so useful is their ability to visualize and comprehend invisible signals. Ultrasound is above human hearing threshold, so by definition, it cannot be heard by humans. However, if you use an oscilloscope, you can see it easily and study it. The oscilloscope, on the other hand, offers the possibility of seeing and studying sounds in a way that may not otherwise be possible for those with hearing impairments.

How an oscilloscope works

Despite their innumerable similarities, oscilloscopes are almost exactly the same as traditional televisions. Often, oscilloscopes are referred to as cathode-ray oscilloscopes. The back of a TV screen is coated with phosphors that make electron beams scan across it back and forth. The phosphors illuminate when the beam strikes the screen. Electron beams sweep across the screen in less than a blink of an eye and build up the picture you see. Afterwards, it’s the same thing all over again. Once more. Once more. so, Instead of seeing a still picture, you see a moving one.  Oscilloscopes work in much the same way except that the electron beams draw graphs rather than pictures. What you are really seeing when you look at a line on an oscilloscope screen is the wobble of an electron beam!

One thing to keep in mind is that, what appears on your on-screen chart depends on the signals transfer into the x and y connections. Traditional oscilloscopes are analog devices because they correspond one to one with these two things. Alternatively, we could say that the trace on the screen is an analogy of your object of study.

Types of oscilloscopes

CRT and LCD

Cathode-ray tubes (CRT) were used to create oscilloscopes, as we already learned. Its bulk, weight, power usage, unreliability, and cost make it an unattractive investment. The CRT television has been increasingly replaced by LCD technology, which is more convenient. So, CRT oscilloscopes are almost all being replaced with flat-panel LCD screens. As opposed to older oscilloscopes, LCD oscilloscopes draw traces through digital electronics instead of moving electron beams — effectively mimicking what happens when using the older technology. It is generally cheaper and more compact to use LCD oscilloscopes.

The traditional oscilloscope makes use of entirely analog technology. You can feed them signals, and they will display them on the screen in accordance with what you input. The LCD oscilloscope is usually a digital oscilloscope. Analog signals are converted into digital form by analog-to-digital converters, then the numbers are plotted on the screen.

Plugin (USB) oscilloscopes

Computers, tablets, and smartphones already come with CRT or LCD displays, so buying the best usb oscilloscope is no longer necessary for occasional hobby uses. Many companies sell affordable oscilloscopes for mobile devices that plug into USB ports or have equivalent leads. You can use a PC or mobile device as an oscilloscope if you have one of these programs. It’s great to have that option!

How Oscilloscope Works

Analog oscilloscope

Let’s take a look at how analog oscilloscopes work. Here is a block diagram that shows the process easily. Let’s have a look at the diagram and read the full description to know how analog oscilloscope works:

how oscilloscope works

Analog oscilloscope block diagram

Probe:

Your circuit under test is connected to this piece. Oscilloscope measures the difference between two points (voltage) with probes that typically have two tips each.

Amplifier/Attenuator:

It is often necessary to amplify (increase in amplitude) or attenuate (decrease in amplitude) an electrical signal before it can be sensibly displayed to the user or without damaging the oscilloscope’s inner circuitry.

Trigger System:

Triggers determine when the oscilloscope begins displaying waveforms based on a user-defined condition (such as a voltage threshold). It can be extremely useful when finding intermittent pulses in a circuit or when synchronizing the display to regular patterns like sine waves so that the pattern remains steady on screen.

Sweep Generator:

Sweep generators create sawtooth voltage patterns in order to control the horizontal plates in CRTs. With this technique, the beam of light moves from one side of the CRT to the other. The  sweep generator can be set to produce a certain frequency and triggering.

Horizontal Amplifier:

The horizontal amplifier, which can control the horizontal plates in the CRT, is much like what was found after the probe. It enhances the sawtooth wave from the sweep generator to control the amplitude of the horizontal plates.

CRT:

A phosphor-coated screen is illuminated by an electron gun that continuously fires electrons onto it. The beam is deflected by two sets of plates. Using the probe voltage, the vertical plating is controlled directly, and using the sweep generator, the horizontal plating is controlled. A solid line is shown on the screen when the beam rapidly deflects. As the probe voltage varies over time, this line on the display shows it.

Digital Oscilloscope

In the 1980s, Nicolet manufactured the digital oscilloscope (DSO) by utilizing a relatively slow  analog-to-digital converter (ADC). Digital oscilloscopes have become faster, smaller, and more popular as digital technology has advanced.

Digital Signal Processors are essentially sophisticated computers fitted with high-end analog to digital converters. Although there are many similar functions and features to those found on older analog oscilloscopes, there are also some that are new.

Let’s have a look at the diagram and read the full description to know how Digital Oscilloscope works:

how oscilloscope works

Digital Storage Oscilloscope Block Diagram

Probe:

In order to test your circuit you need an oscilloscope that can measure the voltage between two points. The tips of most probes are attached to different nodes on your circuit.

Amplifier/Attenuator:

In oscilloscopes, electrical signals are amplified or attenuated by circuits. This will allow for an effective display and will prevent damage to internal components.

Trigger Select:

Most oscilloscopes can display waveforms triggered by either an internal or external signal (from another source).

Control Logic:

An opportunity for a user to adjust signal capture and display logic. Analog oscilloscopes have horizontal controls that are analogous to the controls on the control panel, but they offer more options.

ADC:

A sampling rate is determined by the control logic of the analog-to-digital converter. Binary numbers are created from these samples and then stored in memory.

Memory:

In memory, sampled signals are represented by digital data. Using this information, a graph representing a close approximation of the original electric signal can be generated.

Time Base:

The horizontal axis on the display is controlled by the time base as set by the control logic. The  user can adjust the time base based on a single trigger point to capture sporadic signals or to hold periodic signals, such as sine waves, steady on the display during a period.

Display:

An oscilloscope displays waveforms on a screen by combining memories with time bases and displaying waveforms from memory. Waveform in which voltage and time are represented as Y-axis and X-axis, respectively, often represents the sampled signal. In older DSOs, CRT displays are used as displays, but most modern DSOs use LCDs.

The Evolution of Oscilloscopes

The oscilloscope has evolved into a smarter, more powerful piece of test equipment since their invention. PC-based oscilloscopes are highly portable and analyze and display waveforms with the processing power of a computer. A digital phosphor oscilloscope (DPO) can display a signal’s frequency-of-occurrence in a manner that mimics an analog oscilloscope.

Logic analyzers specialize in displaying digital signals, which are made possible by oscilloscopes. The mixed signals oscilloscope (MSO) is the result of combining these two powerful instruments. Analog signals can be displayed on MSOs just like oscilloscopes, while digital signals can be analyzed like logic analyzers.

FAQ

What is the working principle of oscilloscope?

Voltage can be measured with an oscilloscope. During this process, a small current is drawn in order to measure the voltage drop across a resistor. Using an electric field, the voltage drop amplifies and deflects the electron beam either in the X (horizontal) or Y (vertical) axis.

What is the purpose of an oscilloscope?

With an oscilloscope (or scope), voltage signals are tested and represented as waveforms. Graphs are used to show the change in signals.

What are the major components of oscilloscope?

Oscilloscopes have three main parts – the horizontal system, the vertical system, and the trigger system. The oscilloscope is able to reconstruct signals accurately based on the contribution each system makes. Oscilloscopes have three distinct front panels branded  Vertical, Horizontal, and Trigger.

Is an oscilloscope necessary?

It is true that oscilloscopes are primarily used for measuring electrical waveforms. Furthermore, it also has a pretty high degree of accuracy for measuring mostly constant voltage levels. Moreover, it can detect small fluctuations in battery power, which is not possible with most multimeters.

Why are oscilloscopes so expensive?

The oscilloscope is a precision instrument. To ensure they meet standards, they must undergo strict quality control. As a result, costs continue to rise. In addition, higher bandwidth means higher costs.

Conclusion

It only took a few decades for the oscilloscope to evolve from its early days as an analog instrument that could do very little more than display voltage and frequency, into a sophisticated device with PC-based capabilities. These modern devices can process waveforms at speeds of up to 300MHz, which is much higher than any analog scope ever created.

There are even digital phosphor oscilloscopes (DPOs) on the market today that mimic the appearance of their predecessors but have all of this power behind them. If you want to learn more about how these instruments work or what types exist, let us know!

Siglent Vs Rigol

siglent vs rigol

Siglent and Rigol are staple choices of brands when looking for a premium oscilloscope that won’t disappoint. They both create almost similar devices with good learning curves, a broad spectrum of applications, high precision measurements, automatic and manual operation modes, HD screen resolutions, and many more.

However, when choosing, you may only need to part with some dime for a single device. As such, it becomes a bit daunting to know which brand wins in the tussle of Siglent vs. Rigol oscilloscopes. In this comparison, we’re going to cover all the features that set each brand apart, similarities, and differences.

In case you’re in a hurry, you can jump onto the conclusion part of this article for a glimpse of our preferred choice. We also show the metrics we’ve considered to come up with the verdict.

Siglent Vs. Rigol Brief Analysis

Siglent and Rigol oscilloscopes share myriads of similarities. If you’re a beginner in the circuitry industry, it is normal to confuse which brand to choose. For decades, those who’ve been in the industry cannot differentiate and select the best model between the two.

To be pragmatic, every Siglent model has an equal Rigol competitor. Only a few design tweaks can weigh out, but the two will almost be the same on functionality. So expect this competition to be a stiff one with a lot to take into account.

To understand the two brands, it is best to consider their originalities and a brief history. Well, Siglent is a European brand founded in 2002. This company has developed over the past one and half decades to become a renowned electronic creator that also makes DC power supplies, multimeters, and waveform generators.

Siglent has branches and outlets across the globe. It is the top producer of oscilloscopes in China and the Asian world as a whole. Almost 15% of the brand’s annual revenues go into R&D technology support programs. Siglent products are among the topmost creative devices you’ll ever find in the market, so is the SDS1202X oscilloscope.

Rigol, on the other hand, is a Chinese brand founded in 1998. The company has its headquarter in Beijing, China, and several branches and outlets across the globe. This brand also manufactures waveform generators, spectrum analyzers, RF signal generators, multimeters, and oscilloscopes.

Rigol is one of the electronic device producers that are always on the trend for new and more advanced creations. The brand currently has more than 493 patents. It prides on developing the RSA5000 real-time logic analyzer and a wide range of top-notch oscilloscopes, including the Rigol DS1054Z.

Siglent Vs Rigol Comparison Chart

Siglent SDS1202XRigol DS1054Z
200Mhz bandwidth and two channels50Mhz bandwidth and four channels
7-inch 800×480 resolution screen display7-inch 800×480 resolution screen display
14 Mpts Irecord Wave Depth12 Mpts Irecord depth that expands to 24 Mpts
1 gsa/use Real-time sampling rate1 gsa/use sampling rate
16.53 pounds weight6.60 pounds weight
One USB port for CableOne USB port for cable
Electric cordedElectric corded

Siglent Vs. Rigol (side By side comparison of their features)

Siglent SDC1202X-E200

This oscilloscope comes in a rectangular body with two stands attached at the base for support. The outer surface is finished in a grey shade that gives it the appeal it deserves. The brand has used a dark-colored hue for the screen that enables the oscillating waveforms to show effortlessly, even in the dark.

Just below the screen are menu buttons and the ON-Off power button. The farthest left, below the screen, is also a USB port for connecting the device to any electronic device you’d wish to test voltages on.

The right side of the oscilloscope features navigation buttons that you can use to initiate, run, and fluctuate triggers. The top part contains controls for selecting and adjusting intensities, clearing sweeps, saving and recalling sweeps, displaying measurement, modifying cursors, printing results, and a lot more. You can as well run or auto-stop the triggers using the two buttons at the farthest top-right corner.

The middle buttons are for variables and math functions. You can use them to adjust the depth of your waveform either vertically or horizontally. The trigger buttons at the middle, farthest right, applies whenever you want to set up either single or double channels when triggering.

At the bottom-right side are three ports for X, Y inputs, and an extension. You can use these ports to connect the device to the grid.

RIGOL DS1054Z

Rigol DS1054Z is a rectangular-shaped oscilloscope that features a grey color for the body. It comes with two stands at the base to augment its bench-top body style. The screen is striking dark to allow for easy peaking of the waves as they form.

Unlike the Siglent counterpart, this oscilloscope comes with its Primary menu buttons located at the farthest left, lining vertically. Below the six buttons are the ON-OFF button and a USB port for connecting a secondary device. The screen below is an empty groove that serves as a cherry top to its design tweaks.

The navigation buttons line on the right side, with the top part featuring clear, auto, run/stop, and single-channel tabs. The middle-right buttons for REF and Math functions and 4 CH buttons for running advanced algorithms: the Menu, Mode, and Force buttons line to the farthest right on the middle right.

Lastly, at the bottom of the navigation buttons are four CH ports for plugging CH and power cables. Each port has a description of the cable it accepts to eliminate any confusion when using.

  • Number of Channels

The competition of Siglent Vs. Rigol cannot be complete without mentioning the number of channels each has. Well, Siglent SDS1202X-E200 comes with two channels, with a button that you can use to initiate and run only one channel.

Rigol SD1054Z, on the other hand, comes with four channels, with a button that you can use to run only a single track. For higher scopes of functions or use on multiple devices, this model is your go-to.

  • Screen Display

Siglent  SDS1202X-E comes with a large-7 inch screen display that is sizable enough to capture two waveforms. The TFT-LCD display uses the ultra-high-definition 800 x 480 resolution. It is bright enough for use even in the dark.

Similarly, Rigol DS1054Z features a 7-inch screen display that supports four waveforms simultaneously. It leverages the 800 x 480 screen resolution so that you can be sure of an oscilloscope bright enough for use anytime.

  • Bandwidth

Siglent SDS1202X-E has a bandwidth of 200Mhz. It is one of the few oscilloscopes in the medium category that will guarantee you a detailed measurement. Even more, it supports the 1gsa/use sampling rate, making it very accurate and ideal for all tasks that require precision measurements.

Rigol DS1054Z, on the other hand, has a bandwidth of 50Mhz. The bandwidth and the channels are analog. As such, it is not better placed to guarantee accurate results in precision measurements.

  • Boot-Time

If you’ve ever used devices from both Siglent and Rigol, you’ll concur that Rigol devices boot faster than their Siglent counterparts. On average, Rigol’s advanced devices boot in less than 10 seconds, while Siglent’s take up to 30 seconds to start.

However, how fast your device will boot primarily depends on its period of use and the state of its inner components. But even with that, you will never go wrong with the Rigol DS1054Z if boot time is one of your critical concerns.

  • Price

Siglent SDS1202X comes with a $379 on Amazon. You’ll also need to pay shipping fees and import charges. Nevertheless, this price tag is susceptible to fluctuation. So it can go higher or lower over a certain period.

Rigol DS1054Z features a $349 price tag on Amazon. Additionally, you have to spend on shipping costs that vary depending on your country. If you intend to cut the cost corners, this model will warm your heart as it is less expensive.

Siglent Vs Rigol (Pros and cons)

Siglent SDS1202X

Pros

  • It has a generous bandwidth for precision measurements
  • It has a memory depth of 14MPts for a detailed display
  • It has a high-resolution 7-inch screen display
  • Ideal for use with all functions that require double channel
  • It comes with 1FFT math analysis for running advanced logics
  • It comes with a storage memory bus for playbacks

Cons

  • A bit pricier compared to most variants in the market
  • Not ideal for functions that require multiple channeling

Rigol DS1054Z

Pros:

  • It comes with up to four channels for various uses
  • Can focus and zoom a specific part of the waveform
  • It comes with a 12MPT memory depth that you can upgrade to 24MPT
  • The ultra-display 7-inch screen is sizable enough for use with up to 4 channels

Cons

  • The four channels are analog
  • The 50MHz analog bandwidth doesn’t suit precision measurement

The Winner

Rigol DS1054 warms the heart for its number of channels; However, its bandwidth is lower than its main competitor. But even with that, its price is a steal when you factor in the scope of functions it can undertake; we have no choice short of crowning it the winner in the tight race of Siglent Vs. Rigol

Angled vs Straight Spotting Scope

angled vs straight spotting scope comparison

When it comes to hunting, you would require a specific type of specialized gears. The same thing goes for birdwatching too. Among all of the specialized equipment, the spotting scope is the most important.

No matter which application you intend to use the scope for, a high-quality unit is a must. Without getting one of the quality ones, it would be quite difficult for you to identify and spot distant targets.

And when people consider buying one of these, they tend to put angled vs straight spotting scope against each other.
And we are here to make things easier for you so that you do not end up scratching your head when it comes to choosing one of them.

Angled vs Straight Spotting Scope Comparison in 2021

Angled Spotting Scope Reviews

First, let us talk about the angled spotting scopes. Just like the name suggests, these are angled. And the curvature takes into full-effect in the eyepiece area. Now, you might ask, why would a scope be curved in that region only? Well, that curvature has some advantages to offer.

First of all, it will enable you to change your viewing angle, which can come in handy in the case of spotting targets that are farther away from you. It can also make it comfortable for you to view your targets that are in hilly or mountain areas.

Secondly, it will do the same thing when it comes to looking directly downhill. You will be able to position the scope to the angle that you prefer and have a comfortable overall viewing experience.

Besides just coming in handy in mountainous areas, these offer a redefined viewing experience in straight regions. No matter if your target is on the ground or in the sky, you will be able to track it efficiently with this.

Recommended BMX Angled Spotting Scope to Buy

Now that you have a general idea about angled scopes, you would want to know which ones are worth the money, right? Well, according to us, these are the ones that we think are worth every penny:

Celestron – Ultima 100 Angled Spotting Scope

Celestron – Ultima 100 Angled Spotting Scope – 22 to 66x100mm Zoom Eyepiece – Multi-Coated Optics for Bird Watching, Wildlife, Scenery and Hunting – Waterproof & Fogproof– Includes Soft Carrying Case

The multi-coating on the lens is a must when it comes to spotting scopes. And Celestron knew that well when they were manufacturing this scope to offer to the crowd.

First of all, you are going to get the full freedom of choosing between three different variants. It comes in 100-45, 65-45, and lastly, 80-45 variant. The first number stands for the objective lens size, and the second number is for the viewing angle.

Apart from that, it integrates all the essentials that are required for a redefined viewing experience. The zoom eyepiece comes integrated with a T-adapter to digiscope.

You will also find a carrying case, a port cover for the eyepiece, a lens cap, eyepiece pouch, cloth for cleaning the lens, and finally, a carrying case in the package.
Aside from including all the essentials, the unit has a sharpening feature. The eyepiece has a razor-sharp focusing dial that will enable you to bring the target into focus quickly.

Lastly, the optics have multiple layers of coating on them. Those coatings will make sure you do not lose your target for reflections. It will also ensure that the color and contrast is adequate.

PROS

  • Sports multiple coatings on both the lens
  • Includes a large number of accessories
  • The eyepiece has a sharp zooming dial
  • Available in three different variants
  • Offers a sharp image with balanced contrast and color

CONS

  • The 100-45 has a relatively narrow field of view when zoomed
  • Images tend to lose clarity when zoomed higher than 22x

SVBONY SV46 Spotting Scope

SVBONY SV46 Spotting Scopes with Tripod Full Size, 20-60x80 HD Dual Focusing, High Definition IPX7 Waterproof BAK4 FMC, Zoom Angled Range Spotter Scopes, for Wildlife Viewing Birding Target Shooting

In the case of hunting and spotting birds, you would have to traverse challenging environments. And in that case, a unit with IP certification would be the best pick. A perfect example of a scope such as that would be this one that is being offered by SVBONY.

As we mentioned, the unit has IP certification. It is IPX7, which means it is highly resistant to water. You would not have to worry about it getting damaged in tough weather conditions. It can resist dust and debris relatively well too.

Aside from that, the lens that it features has a special type of coating that allows it to reduce sun glares and reflections. Because of that coating, focusing on your target will be a piece of cake.

Apart from that, the eyecups have a relieved eye area that will enhance the overall comfort. It also has an ergonomic design, which makes it easy to use. Observing birds and tracking wild targets will become an easy task because of the design that it features.

Other than that, there is a heavily engineered focusing dial. It will ensure that you can quickly and accurately change the zoom. You can select a zoom from 20x to 60x.

PROS

  • Sports an IPX7 rating
  • Features an overall ergonomic design
  • The eyecups have an eye relief area
  • Boasts a highly intuitive zooming dial
  • Lens has an anti-glare and anti-reflective coating

CONS

  • Not capable of providing a clear image above 25x zoom
  • The color and contrast is not that balanced

Vanguard Endeavor HD 82A Angled Eyepiece

VANGUARD Endeavor HD 65A Angled Eyepiece Spotting Scope, 15-45 x 65, ED Glass, Waterproof/Fogproof, Black and Gray, 65mm

Not everyone requires the same size of the lens. Well, Vanguard understood that, and that is why they are offering an option in the case of size with this unit.
To begin with, it is available in two different variants.

You can choose anyone from 15-45×65 millimeters and 20-60×82 millimeters. The objective lens size is 65 millimeters for the first one and 82 millimeters for the second one.

The overall construction of the unit is of magnesium. It features a rubber armor coating on the exterior to enhance the overall durability. Also, there is a sun shield built right onto the body. That will reduce glaring and reflection problems that might occur while being under direct sunlight.

Other than that, there is a dual focus wheel on the body. It is clicky enough to enable you to make a fine adjustment to the focus. Because of how coarse the adjustment wheel is, it will be totally hassle-free for you to track moving targets.

The unit is fogproof and waterproof as well. Also, the eyepiece is detachable. It has a soft rubber tip, which allows you to rest your eye comfortably on top of it. The eye relief is relatively long too.

PROS

  • Two different versions available
  • Made of magnesium
  • Equipped with rubber armor on the body
  • Features a built-in sun shield
  • The focus wheel is easy to adjust

CONS

  • Included case can not properly fit the unit
  • Sharpness of the image is not that praiseworthy

Straight Spotting Scope Reviews

Straight Spotting Scope

As you can guess, these scopes are straight. These do not have any curvature on the body, nor will they have any angled design. They are most likely to have a one-piece construction, which would be made from a single tube. Many people even refer to them as telescopes because of the straight design that they feature.

And just like telescopes, you would require a tripod to make them sit at an appropriate height. Without tripods, getting an adequate viewing height for these would be pretty tricky.

Nevertheless, these are most comfortable when you are in a prone position. You would not have to raise your head that much while staying at prone with these.

However, they do provide the capability of quickly acquiring your target. Many of them also have different adjustability options to make it easier for you to switch between near sight and far sight tracking.

Recommended Straight Spotting Scope Reviews

Not all of the straight spotting scopes you will stumble upon will offer you a redefined target tracking experience. For your convenience, we have compiled a shortlist of the ones that will offer you that experience. They are as follows:

Athlon Optics Talos 20-60×80 Spotting Scope

Athlon Optics Talos 20-60x80 Spotter Scope , Black

The manufacturer Athlon has been one of the leading brands when it comes to spotting scopes. They offer highly reliable and high performing units. And this one that we are going to take a look at is no exception in those regards.

To start with, it features K9 prisms. The glasses are coated with a silver coating. That coating makes sure that enough amount of light is passed through the lens, resulting in a brighter image. So, you would have no trouble at all in the case of tracking targets in fairly dark environments.

Aside from the silver coating, it has another set of coatings on the lenses. Those eliminate the chances of you losing track of the target because of reflections. They also further enhances the clarity of the image.

The body has nitrogen purging, which makes it highly resistant to moisture. As a result, internal fogging would not be a problem for you. It also enhances the thermal stability of the unit.

Apart from that, it is reasonably waterproof, allowing it to comply with harsh environments. Also, it has a rotating ring that will enable you to adjust the angle quickly.

PROS

  • Boasts K9 prism glasses
  • Lens has multiple layers of coating on them
  • Nitrogen purged to ensure a high level of fog-proofing
  • The body is waterproof
  • Features an easily adjustable rotating ring

CONS

  • The eye relief is shorter in comparison
  • Does not have that many magnification settings

Celestron 52333 TrailSeeker 80

Celestron 52333 TrailSeeker 80 - Straight Spotting Scope (Black)

Having options in the case of the size of the objective lens is always a plus point. And that is what Celestron is offering with this unit.
As we said, the unit is available in a few different variants. You will find it in three different versions. The size of the objective lens is different for each of them. There are 100 millimeters, 80 millimeters, 65 millimeters options available.

The lenses that Celestron utilized for this unit are proprietary. They are XLT lenses with full multi-layer coating. That coating makes sure that reflection and glares do not become a problem in the case of tracking targets.

Apart from that, the coatings also ensure that the contrast and the color of the image are well balanced. Also, those will make sure that enough light passes through. You are sure to get a bright and clear picture because of that balancing of contrast and color.

The focus knob that it features offers quick and easy adjustability. It has a dual focus mechanism that has a set of fine and coarse adjustment options. Also, you can zoom up to 60x with the magnification knob. The field of view is quite wide at the 20x zoom.

PROS

  • Sports proprietary XL lenses with high light transmission capability
  • The lenses have numerous layer of coating
  • Features a focus knob that has coarse and fine adjustment options
  • Can be zoomed up to 60x
  • Boasts a relatively wide field of view in 20x zoom

CONS

  • Threadings on the body loosen over time
  • Brightness drops significantly after 20x zoom

Vortex Optics Diamondback Spotting Scopes

Vortex Optics Diamondback Spotting Scope 20-60x80 Straight

Featuring a comfortable eyecup is a crucial factor for spotting scopes. Without that, you can not really expect to have a redefined spotting experience. An excellent example of units that come boasting that type of eyecup would be this one that Vortex Optics is offering.

As we mentioned above, the eyecup that it features has an adjustable twisting knob. You can twist it up and down and set it to different glassing positions. Because of that, you can virtually set it up to the position that you prefer, which adds up to the comfort factor.

Apart from that, the overall footprint of the unit is reasonably compact and lightweight. As a result, you will have no problems at all in the case of carrying it in your regular backpack.

Also, the lenses that it features are fully coated with numerous layers of coating. Those coating will ensure that an adequate amount of light passes through the tube.

The zoom eyepiece that it boasts is pretty powerful. It also has nitrogen purged into the body. That is combined with strong O-rings, which seals the entire body to offer you a fogproof and waterproof performance.

PROS

  • Eyecups are twistable, which increases the overall comfort
  • Features a powerful zoom eyepiece
  • Lenses have multiple coatings on the surface
  • Compact and reasonably lightweight
  • Sealed with strong O-rings and nitrogen purged

CONS

  • Focusing knob is a bit finicky
  • The high power setting drops the overall brightness substantially

Angled Spotting scope or Straight Spotting Scope?

Even though both of the spotting scopes are used for the same purpose, there are some differences between them. The major differences are:

Design

It goes without saying that the design of both the scopes is different. While one of them has a curved design, the other one has a straight design. Even though the design difference might not seem that drastic, but that is what differentiates both of them in the first place.

Stability

In comparison, the angled scopes are more stable than the straight ones. Even though you would have to use a tripod for both of these, the angled one can sometimes be used without a tripod. Yes, it is that stable! And after putting a tripod under it, it will be more stable even if there is a strong wind.

Target Acquisition

If both of these are put against each other in the case of target acquisition, the straight one would have the edge over the angled ones. They are easy to use, and adjustments can be made almost instantaneously. So, you will be able to acquire the targets quickly and easily.

Sun Shading

The straight ones have better sun shading in comparison. As there are no angles, your eye would rest with the eyecup directly. Because of that, the lens would be more protected from sunlight. Thus, there would not be that much glaring and reflection issues with these.
Conclusion

Hopefully, we were able to provide you everything you were expecting to get in an angled vs straight spotting scope article. To conclude, we would want to wish you good luck and hope that you can quickly acquire your target and easily track it with the scope that you get.

Best Automotive Oscilloscope

best oscilloscope for automotive

Whether you’re a professional or a hobbyist, choosing an oscilloscope can get very nerve-wracking. Everyone wants the best oscilloscope for automotive works, no doubt.

These signals displaying devices are meant to let us know exactly how computer modules, sensors, or ignition systems function. Often times they’re used to diagnose these circuits as well. Being very similar to a voltmeter, the oscilloscopes display a graphical chart of how the waves in a circuit are flowing.

If you’ve used one before, you’ll know how different modern PC-based automotive ones are from the older styles. That’s why, to let you know about all the nitty-gritty details of best automotive oscilloscopes and help you choose one for yourself, we’ve put together this list of the best 8. So to get things into gear, let’s take a look at our list.

Best Automotive Oscilloscope Review

Gone are the days of using old analog oscilloscopes. For anyone looking to deal with a weak frequency or tweak with automotive gadgets, it’s better to choose a digital one. And looking at some reviews can surely help you up your buying game.

1. Autel MaxiIM IM608

Autel MaxiIM IM608 Advanced Key Programming Tool 2021 New Model with IMMO & Key Programmer XP400 & J2534 Reprogrammer, Bi-Directional Scan Tool & 30+ Services and All Systems Diagnosis

This is one of the most advanced and up-to-date devices for automotive use in the market today. Features included in this device are BMW FEM, BDC key Learning, and ECU adaptation that makes it perfect for your drive. This tool comes with an XP400 key programmer, and that provides services in advanced forms.

In fact, with this, you’re going to get a lot more than you asked for. It combines advanced services of key programming and all systems diagnostics that are very much like OEM tools. So you get the best of both worlds.

Given how easy it is to navigate and its several dynamic features, it’s no wonder that this item has received 5-star ratings on almost every site rating oscilloscopes.

Now, let’s get to the package, shall we? With this item, you’ll receive a key programmer, cables and cords, and MaxiFlash JVCI along with an AC/DC adapter. All of this will come in a carry case to put everything in place.

You can use this for high-speed, low speed, or middle speed according to your wish.One of the most attractive factors of this product is its 8-megapixel rear camera that’s built-in with autofocus and flashlight.

But don’t go off on your horses just yet. It’s got an open-source Android operating system suitable for all the multi-taskers out there.

PROS

  • Multiple languages, and suitable for more than 80 builds and models across Asia, America, and Europe
  • Smart and an Expert mode available for accessing the IMMO section
  • The programming function doesn’t require any vehicle connection
  • Easy to navigate and has unique and diverse features

CONS

  • Can’t reprogram the ECU module of a car that has been through an accident

Buy on Amazon


2. Rigol DS1054Z

Rigol DS1054Z Digital Oscilloscopes - Bandwidth: 50 MHz, Channels: 4 Serial Decode Included

Now, let’s put the spotlight on this incredible machine from Rigol. This benchtop style machine is the perfect pick for those looking for a safe bet. Quite justly, it’s been the most popular one in stores ever since its launch. If you’re looking for something on the budget but still get all the amazing services, this one’s for you.

Not only does this device allow you to capture signals accurately and efficiently, but its multifunctional features also allow you to do a lot more. Since this device has four different channels, you get to measure and compare the readings very easily.

It also makes things more accurate and maintains consistency in performance. And if you’re worried about getting a display that’s unreadable in daylight, rest assured because that’s not going to happen for this one.

The epic 7-inch surface display with an ultra-vision on this device is sure to let you read your data, no matter when or where you are.

What’s more amazing is that it has an expandable memory from 12 to 24 mpts. That means you can store ample amounts of data and record for longer periods of time. You can capture waveforms that are up to 30,000 wfms/s with a real-time sample rate of 1 G Sa/s. So, you can rest assured that speed won’t be an issue.

PROS

  •
    It comes with a manual
  •
    User-friendly interface
  •
    Straightforward storing and retrieving data
  •
    Comparison is easy due to the presence of four channels, ensuring accuracy

CONS

  •
    Size is big and not handheld

Buy on Amazon


3. Siglent Technologies SDS1202X-E

Siglent Technologies SDS1202X-E 200 mhz Digital Oscilloscope 2 Channels, Grey

As is the case with many of Siglent’s other products, this device here is exceptionally well made. Not only in terms of features but also in case of build and price point – this is a catch.

You’ll be getting this in a grey color weighing 5.51 pounds. It’s got a display of 7 inch TFT LCD (800 x 480) that can give temperature displays in color. And if that doesn’t impress you, don’t worry. There’s more in the bag.

Since the display is made with SPO technology, it provides faster refresh rates and intensity grades readings based on brightness. You’ll be getting hardware-based zoom-in features that let you focus on the specific area of interest minutely. The record length for this oscilloscope is 14 Mpts.

Its waveform capture rate is 400,000wfms/s. One thing we often hear our fellow hobbyists complaining about is that most of the scopes available in stores don’t allow a history check. This means you can’t go back and check triggered frequencies or readings.

But that’s not a problem with this one. The History function, along with the segmented memory acquisition feature, makes sure you get to playback and time stamp waveforms to your liking.

There’s a standard Serial Bus Decoding function in this machine that displays bus protocol information in a neat table form. Finally, the real-time sampling rate of this is 1 GSa per second, making it pretty standard for a nonprofessional.

PROS

  •
    Has the latest SPO technology
  •
    The large display has a zoom-in feature
  •
    History function allows playback and time stamping
  •
    Well-built and reasonably priced

CONS

  •
    The FFT GUI and FFT performance, in general, is slow

Buy on Amazon


4. Siglent Technologies SDS1052DL

Siglent SDS1052DL Digital Storage Oscilloscope with Frequency Counter, 50MHz, 7'' TFT-LCD Display with a NIST-Traceable Calibration Certificate with Data

If you want something affordable and decent enough for homework or hobbies, you can get this one from Siglent. It’ll cost you something a bit more than two hundred dollars and give readings like a charm. Also, it’s very intuitive and user-friendly.

As this product has a two-channel setup, it’s quite accurate in measuring and allows scope for comparison. Its maximum real-time sample rate is 500 MS/s, and the recording length is 32 Kpts. So you can easily acquire detailed waveforms.

Coming in 6.2 inches of height and length of 12.7 inches, this product is not very big or bulky. The bandwidth for this oscilloscope ranges from 50 to 150 MHz. Its display is a 7-inch TFT-LCD color display that provides clear output.

And as for memory depth, its 32 Kpts memory makes sure you can do your experiment without worrying too much about space.

A fun thing about this scope is that there’s a playback function for when you want to rewatch the recorded stream of waves. If you’re the curious type who likes tweaking with all the home gadgets just for the sake of it, you can use this for inspecting circuits and diagnosing automotive.

Including 32 types of auto measurements and a five parameter display with pass/fail function, this is no doubt one of the best of its kind.

PROS

  •
    No warm-up time needed for the stability of display when using channel 2 as reference
  •
    The on-screen menu display lets you set up the scope quickly
  •
    Greatly sensitive frequency counter
  •
    Easy to save a screenshot by inserting a thumb drive

CONS

  •
    It is a bit noisy when used

Buy on Amazon


5. Rigol DS1102E

Rigol DS1102E 100MHz Digital Oscilloscope, Dual Analog Channels, 1 GSa/s Sampling, USB Storage

While searching for the right oscilloscope, there are several criteria you probably have in mind. Quality, stability, durability, size, and multidimensional features – this one tick off all the boxes.

Coming with the software called Ultrascope, this is truly a unique device. Given its price and service, you’ll soon realize why it’s said to be one of the best out there.

As for the features, this has wave parameters of 20 kinds and 10-time parameters along with 10 voltages. So you can do auto measuring with it without worries. You’ll find that this product has three different types of cursors available.

Those include the manual, track, and auto modes of a cursor. Since the Ultrascope software is really stable, it can give clean readings, no doubt.

Weighing 7.8 pounds and containing two analog channels of measuring, this item is not at all the smallest. Its real-time sampling rate in two different channels is different. One is 500 MS per second, while the other is 1 GS per second.

By now you’re probably wondering about the memory. Well, for this scope, you’ll be getting a memory depth of 16K and 8K points. And as for the display, it has a QVGA display with 64K color. An LCD backlit display comes with the package.

If you’re looking for something that gets the job done, is priced fairly, and you don’t mind the noise, this one might be the one for you.

PROS

  •
    The steady and stable screen helps read it
  •
    Amazing construction makes it durable
  •
    This item has a built-in menu
  •
    It is budget-friendly

CONS

  •
    A slightly grainy color screen

Buy on Amazon


6. Hantek DSO5072P

Hantek DSO5072P Digital Oscilloscope, 70 MHz Bandwidth, 1 GSa/s, 7.0' Display

This Hantek best automotive oscilloscope is truly a gem hiding in a shell. It’s got the features of a top-notch machine with the build of a classic scope. After you get this, you’ll get a USB cable for connecting to a computer, the manual, and probes along with adjustments with the entire package.

It’s a tabletop-style machine that means it’s not handheld. There’s usually no fan noise either. It’s going to take just about a second or two to boot up. Coming to the basic features, the memory depth of this device is 40K, and bandwidth is 70MHz. It has a time accuracy of 50 ppm (positive-negative) and many trigger modes.

The trigger modes include line selectable video, pulse width, overtime, slop, and edge. For all of you math nerds out there, this has got four math functions including FFTs standard. You can do real-time analysis with your PC using this item as well.

Moreover, the display is LCD color with a 7-inch TFT and a resolution of 800*480. With this, you can do X-Y displays of both horizontal and vertical axes according to your liking. If you want to run this in Windows 7, you’ll need to download the drivers first.

When you get this device, the first thing you should do is replace the capacitor. If you are looking to get this scope, there’s a good chance that you’re already experienced with electronics and using scopes.

You’ll find that this is very easy to control even without the connection to a PC. The GUI is very intuitive and user-friendly. But it’s worth mentioning that you might face troubles with the PC control software.

PROS

  •
    Perfect for experienced users
  •
    Easy to understand manual
  •
    Amazing price for professional features
  •
    Well-built machine

CONS

  •
    PC connection software has issues

Buy on Amazon


7. Launch X431 PROS

LAUNCH X431 PROS Mini 3.0 (Same Function as X431 V+) Bi-directional Scan Tool OE-Level Full System Automotive Diagnostic Scanner 31+ Service ECU Coding Oil Reset ABS Bleeding 2 Years Free Update

Do you want a bi-directional tool? Featuring bidirectional control, this machine offers you what normal snap-scanners do. You can troubleshoot your car quickly using this oscilloscope from Launch. It’s perfect for both pros and amateurs. This tool is equipped with the best hardware out there.

It has Android 7.1 OS and a Lenovo display tablet along with an HD touch screen that’s colored. What more can you ask for? It even has Bluetooth. You can command an actuator to perform specific tests to diagnose different parts of your drive.

Moreover, it weighs just a bit more than 7 pounds and comes with unique features like anti-theft matching, remote diagnosis, actuation test, tooth learning, and many more. It’s a perfect fit for several popular vehicle models ranging from America to Europe and Asia.

Even Aussie cars like the Au-Ford and Holden can be diagnosed using this scope. A great thing that shows the efficiency of this device is that it doesn’t come with a hard copy of the manual. Rather, the tablet included with it has the manual built-in.

And if you’re looking for something that speaks in your native tongue, this tool has it covered too. From Dutch to Arabic and Greek, this scope gives multilingual support. It’s portable, handy, and wireless. You can update the Wi-Fi software to share the diagnostic report to your email. Simply put, it’s the ultimate smart scope.

PROS

  •
    Portable
  •
    It has Bluetooth
  •
    It comes with 11 practical service functions
  •
    Suitable for over 10 thousand car models

CONS

  •
    The Chinese version of this is a bit slow in performance

Buy on Amazon


8. Autel MaxiSys MS906BT

Autel MaxiSys MS906BT Automotive Scan Tool, 2021 Newest Diagnostic Scanner Upgraded Ver. of MS906 DS808, with Advanced ECU Coding, Bi-Directional Control, 31+ Services & OE-Level All Systems Diagnosis

Compared to the previous versions of the same company, this one has some great unique functions. With 21 service functions and bidirectional control / active tests, this is a high-end scope for sure. So, if budget isn’t an issue with you, go ahead and pick this one. It’s well worth the money.

This is an advanced version of a similar scope launched previously. For this tool, they’ve improved upon some things and added advanced ECU coding capability, which is compatible with add-ons.


While those add-ons aren’t included in the package, it does help if you already have a digital inspection camera lying around. They do take replacements and refunds, so it’s a win-win situation even when you go ahead and spend your money on this.

The oscilloscope supports both wireless Bluetooth connection and USB traditional connection for transferring data. And the range for its Bluetooth is around 50 meters. So you can get the information on the powerful tablet without any physical cables hooked up.

Even though active tests aren’t a universal thing meant for all drives, you can get the test done on your car (if it’s suited) and determine the integrity of a system easily.

It comes with an Auto VIN scan and all systems diagnostics that are very convenient. But keep in mind that this product is not the lightest. It weighs almost 19 pounds.

The functions that are the most popular for this device are the oil reset, SAS calibration, TPMS relearn, and the DPF regeneration.

PROS

  •
    Has 21 practical service functions
  •
    Has advanced ECU coding capability
  •
    Both USB and BT connection is possible
  •
    Well-built and durable

CONS

  •
    The price is a bit more than average

Buy on Amazon

What to Look for in an Oscilloscope

While looking to purchase anything, be it a machine or any home equipment, there’s always a list of things to look for. Good automotive oscilloscopes are pretty hard to find, given the solid criteria list. The number of things you need to check before grabbing one is mentioned here.

Input Channels

Always check how many channels the tool has. The flexibility, as well as the accuracy of the channel, is very crucial to get your preferred results. The more input channels there are, the more you can compare and read.

Bandwidth

Much like choosing a Wi-Fi, this is an important fact for choosing a scope. Always remember that the highest bandwidth isn’t always the best. Often times the noise gets increased along with the bandwidth since it detects a lot more than is needed.

Your desired width should be twice the maximum frequency of the signal being transmitted. For higher frequency, higher bandwidth is needed.

Rate of Sampling

This particular point determines how many lines and details of the waves can be recorded and stored by the device’s analyzer. The more points a wave has, the more accurately it can be displayed.

It’s quite like image resolution, the more pixels, the better and sharper image. If your chosen item has a sampling rate that’s five times more than the frequency input, it’s going to get the job done with no problem.

Health Navigation

Ok, so even after you’ve got a scope with a great memory and amazing reading capacity, if you can’t navigate the graphs and zoom them in to check, the purpose is lost.

For evaluating what you found, you need to be able to zoom in and take a good look. So look out for good navigation features and proper zoom capacity. You need to be able to select the proper part of the axes to analyze, right?

Probes

The scope you need is one that has at least one probe (preferably two) to be of convenience for you. If probes are included in the set, you don’t have to go around looking for suitable ones to match your measuring intent.

In the case of probes, watch out for digital ones that are more suitable for parallel bus types. There’s a variation of probes today – handheld and portable to soldering ones.

Triggering

This is a big word in the world of oscilloscopes. The triggering of the scope is everything that sets it apart from an average machine. You need to know what you’re looking for and what situations can trigger the device.

But what is triggering actually? It’s basically the starting point of signal acquisition for a certain event. There are both hardware and software triggers. Look for how much you can specify the trigger and its transition zone.

Connectivity and Operation

Does the product come with proper and supportive instructions? Is it easy to use? Since not everything can be known from a manual, and it’s difficult to operate a machine that’s not at all intuitive, look for ones that have basic user guidance built-in and straightforward menu options.

Also, look for whether or not a dashboard is possible as it lets you compile and evaluate tasks in a personalized interface. If you are getting a very pro-level scope or if you lack experience in working with scopes before, it’s good to get one that offers online interactive help.

Connectivity

Finally, look at the connectivity of the device. Does it have Bluetooth? Is it suitable for connecting to your Windows and PC? The factors like the programming interface, printer connection, and data transfer to MS Excel or Word is definitely something to keep in mind while buying one.

Frequently Asked Questions

Here we have some of the most commonly asked queries regarding oscilloscopes:

Here we have some of the most commonly asked queries regarding oscilloscopes:

What does a digital oscilloscope measure?

A digital scope can measure a lot more than just waveforms. You can display the waveforms, analyze, and store them. They read frequencies, and they take simultaneous readings of different machines.

Why should I use an oscilloscope?

If you troubleshoot or work with electronics at high speed, you need to use one. Using these, it’s possible to figure out what’s wrong with a particular device and whether it is working correctly or not.

How many types of oscilloscopes are there?

There are mainly two types – digital and analog oscilloscopes. But going more into depth, there’s a lot more – around five different types to be precise. You’ll find the cathode ray scopes, dual-trace, and mixed-signal scopes. There are DSO scopes that are more common nowadays.

What does triggering an oscilloscope means? And how do I do it?

Triggering an oscilloscope means having it pick up signals from a certain point in a certain circumstance. You can do this by using a switch in most cases.

Oscilloscopes for auto-use have triggers that are both internal and external inputs. Almost all scopes have an external triggering input, and you can choose how the triggering should take place.

Which components are involved in measuring and reading?

The main elements of the device involved in reading are the cathodes and anodes present. There’s also a light-emitting layer and a point that detects waves. These machines contain a wheel cylinder that detects the brightness of the screen, and thus, the reading gets done.

Final Words

Your car is an extension of yourself on the road, and quite naturally, it’s precious. So it deserves the best treatment. And for that, you’ll definitely need to get one of the best automotive oscilloscopes to make sure it’s working like a breeze.

10 Best Digital Oscilloscope Reviews

best digital oscilloscope

Any electronic device that is in front of you seems like a seemingly simple machine. However, tons of hours of coding, designing, forming and calculating went before manufacturing all these machines.

Certainly, nobody hit the jackpot on the first try and had to troubleshoot and debug numerous errors. How do you think engineers and technicians do that? Well, previously, voltmeters, multimeters, and several other tools where prevalent. However, oscilloscopes are all the rage now.

In fact, digital oscilloscopes can do the work of several debugging tools and much more. They have well-built screens, sensors, and detectors that can make your life so much easier.
So, if this new tool has caught your interest, then let’s jump right into this digital oscilloscope review.

Best Digital Oscilloscopes Review

Although this kind of device is relatively new, there are still different models in the market. However, our personal opinion is that digital oscilloscopes are the best in this game. So, we are eager to present to you some of the top digital oscilloscopes from the market.

1. Rigol DS1054Z Digital Oscilloscopes

Rigol DS1054Z Digital Oscilloscopes - Bandwidth: 50 MHz, Channels: 4 Serial Decode Included

Any person who works with oscilloscopes knows how helpful probes can be. However, most brands fail to include a helping tool. This element causes slower processing, which ultimately costs you time and effort.

However, Rigol makes sure you do not have to face such issues. Hence they not only give 1 but 2 different probes. Both the tools are double passive modes, so, it packs more power.

Moreover, the DS1054Z has 50 MHz bandwidth with multiple channels. The four different channels enable a speedy transmission of data. As a result, real-time sampling becomes easy. It also means that this device follows the RTS system.

Since the model has 12 Mpt memory capacity, it can hold the data for a more extended time and display for longer as well.

Moreover, you can buy software and upgrade the memory to 24 Mpt whenever you want. So, dealing with more massive data sets becomes manageable, and with that, it can capture up to 30,000 waveforms.

The display is also large and spacious with ultra-vision technology. So, whatever appears on the screen will be clear as water. With this feature, you can reduce the chances of misreading completely.

It is a powerful machine, but you can carry it with ease since it is so lightweight. The durable plastic body allows the tool to be portable. However, you do not have to worry about it breaking.

PROS

  • RTS system
  • USB plugin
  • Capture 30000 waveforms
  • Upgradeable memory capacity
  • 50 MHz bandwidth
  • Four different channels

CONS

  • Not compatible with analog signal

Buy on Amazon


2. Siglent Technologies SDS1202X-E 200 MHz Digital Oscilloscope

Siglent Technologies SDS1202X-E 200 mhz Digital Oscilloscope 2 Channels, Grey

When the input capacity of any electrical device is higher, it naturally means that the machine can complete the work faster. So, if you wanted an oscilloscope that had more than the traditional bandwidth, SDS1202X by Siglent is your product.

It is among the good digital oscilloscopes, as it has a whopping 200 MHz bandwidth. That means the frequency count per second will now be higher. Thus the machine can sample much quicker and deliver satisfactory results.

The recording length also extends up to 14Mpt, which means it has a higher memory capacity. So, it can assist the sampling process further by holding on to the data for longer. Thus the wave will get more screen time.

Consequently, you can take your time to analyze and observe. Besides, the screen is of excellent quality. It features a 256-level intensity grading display function, which will enable you to identify different traces in the form of colors.

Also, it has unique features such as the 1M point FFT math function and several sensitive triggers to guide you in the wave formation process. The dual-channel acts as the cherry on top during the whole process by creating two pathways.

You can use USB cables to connect the tool with your signal source. Since the device feeds in real-time, the wave should start forming as soon as you plugin.

PROS

  • 7-inch TFT LCD

  • 256-level intensity grading display
  • 200 MHz
  • FFT math function
  • Several unique triggers
  • 14 Mpt memory
  • Dual channels

CONS

  • Does not have the zooming function

Buy on Amazon


3. Siglent Technologies SDS1052DL

Siglent Technologies SDS1052DL+ 50 MHz Digital Storage Oscilloscope

Oscilloscopes can help in super technical jobs or for simple repair and debugging work. However, their prices and function also vary on those criteria. However, if you wanted an oscilloscope for repairing but do not want to compromise on quality, then check out SDS1052DL by Siglent.

It has all the necessary features you would need for simple debugging and analyzing, plus some more unique features. So, if in the future you want to branch out and do more experiments, you can — no need to purchase another sophisticated oscilloscope.

The bandwidth on this model is 50 MHz, which is the standard setting for most digital oscilloscope. On top of that, this device can also sample at a rate of 500 MS/s via one channel. So, the ultimate output will not take long.

Moreover, it features two channels. So, while one channel samples, the other one can store the data. The memory on this device is 32 Kpts and can help in forming detailed waves. Due to the two channels, the sampling will also be much faster.

Although this model works for general debugging, it still has some unique features such as a moving cursor, zooming system, and built-in frequency counters. So, students can learn and observe with the help of this machine. It also has different math functions and multiple triggers.
Consequently, you can isolate individual signals and process them.

PROS

  • Dual-channel
  • Affordable
  • 500 MS/s sampling rate
  • 50 MHz bandwidth
  • 32 Kpts memory
  • Easy to use

CONS

  • Cannot function with large numbers

Buy on Amazon


4. Rigol DS1102E 100MHz

Rigol DS1102E 100MHz Digital Oscilloscope, Dual Analog Channels, 1 GSa/s Sampling, USB Storage

This device can be a great learning instrument as it shows frequency, power-level, and even the discrepancies. However, purchasing an oscilloscope with such a steep price for educational purposes does not seem worth it.

But we have the DS1102E from Rigol, which can satisfy all your needs and be gentle on the wallet. One of the primary reasons why this model is excellent for classrooms is its smooth functionality.

It has a large panel of function keys and a manual guide as well. So, even if you have no idea about oscilloscopes, the guide can show you the process. Moreover, to pin-point and identity each wave, the model has three types of cursors.

These are an automated cursor, a manual, and a track cursor. The automated one moves along with time, while with the manual mode, you can jump from wave to wave. The tracking cursor helps in keeping track.

Also, this model has 20 types of wave parameters for automated measuring and an external trigger channel along with regular dual channels. Hence the data can flow through the 100 MHz bandwidth smoothly.

With multiple language interfaces and a built-in menu, sending commands to the machine also becomes a piece of cake. Also, it has several math operations and a replay-key to trace back. All in all, it is an excellent Rigol oscilloscope.

PROS

  • Extremely user-friendly
  • Multiple language interface
  • Extra trigger channel
  • 100 MHz bandwidth
  • 500 GSa/S sampling rate
  • User guide available
  • Affordable

CONS

  • Setting the X-Y mode off is tricky

Buy on Amazon


5. SainSmart DSO212 Pocket Size Portable Handheld

SainSmart DSO212 Pocket Size Portable Handheld Mini Digital Storage Oscilloscope

Just as oscilloscopes have multiple features and usage, they also come in different sizes. So, what if you wanted all the benefits of an oscilloscope but in a pocket form. That would make maintenance and storage so much easier.

Well, if that was one of your wildest wishes, then it has come true because SainSmart has the perfect oscilloscope for you. It is small, it is pocket-sized, and has all the features a regular oscilloscope can provide!

Moreover, the model also has a durable battery life and will not drain out quickly. We had to mention it specifically as most pocket-sized oscilloscopes tend to have weaker battery life. But you do not have to worry about this model as it has a 500 mAh battery.

Also, if you were worried about a smaller screen, do not be, as this model has a TFT LCD color screen. So, even though the screen is 2.8 inches, it can display crystal clear images. On the plus size, the color display can also accommodate more than one wave.

This small but powerful device has multiple trigger sensors and math functions as well. So, you can automatically measure the frequency count without having to do it manually.

Furthermore, ascend/descend and edge triggers are rare among mini oscilloscope. So, this model is genuinely versatile. You can conveniently connect the oscilloscope using USB cables. However, since this device is small, you will need a micro USB.

PROS

  • 500 mAh battery
  • LCD TFT screen
  • Micro USB
  • Multiple math functions
  • Portable and compact

CONS

  • Not suitable for bigger projects

Buy on Amazon


6. Hantek DSO5072P

Hantek DSO5072P Digital Oscilloscope, 70 MHz Bandwidth, 1 GSa/s, 7.0' Display

Being able to see the wave formation cuts half the work during debugging and processing. So, it would help a lot if your oscilloscope had better displays and color gradients.

Fortunately, the DS05072 by Hantek has one of the best screens. It has a TFT display, which means it has multiple color receptors. So, when there is more than one wave, the screen can differentiate.

Moreover, the seven-inch size makes for vibrant visuals. You can even use the cursor to move around and add or deduct frequencies. Thus when it comes to displays, this model can do no wrong.

Besides that, it also has high bandwidth and multiple channels to support the signal passing. The higher bandwidth allows a speedy process, and the dual-channel helps in real-time sampling. So, when one channel samples the wave, the other holds on to the data.

The 40K memory depth further facilitates this holding off process. As a result, the machine can sample at a rate of 1 GAs/s. Plus, you get tons of math functions to calculate data automatically.

It has other auto-measurement systems for frequency, period, minimum, maximum calculations as well. You can connect it to other sources with a USB with ease. So, this oscilloscope can do most of the work for you.

PROS

  • 7-inch high-quality display
  • 800 X 480-pixel resolution
  • Multiple color receptors
  • Dual-channel
  • 40K memory depth
  • User-friendly
  • 1 GAs/s sampling rate

CONS

  • Cannot function on analog signals

Buy on Amazon


7. SainSmart Mini DSO213 Handheld Pocket-Sized

SainSmart Mini DSO213 Handheld Pocket-Sized Digital Storage Oscilloscope 4 Channels

Digital oscilloscopes are amazing, and their pocket-sized versions are convenient. However, mini versions have lots of issues, and they are usually not worth the purchase.

But if you still need a mini oscilloscope, you should certainly check out the DSO213. It is by Sainsmart and one of the high-quality oscilloscopes. That is because it has almost all the features plus excellent battery life.

This model has a 1000 mAh battery. Hence it will not wear down after one or two use. Besides the longer battery life, it also has four channels. Two of them are, of course, digital channels. But you can even work with analog signals with this device.

So, the four channels can simultaneously work on sampling both kinds of signals. However, the display can only show either a digital wave or analog. But still, you can process both signals.

As for the display, it still features a 3-inch display even though the oscilloscope is a mini version. The screen resolution is 400 X 240, which is more than enough for clear visuals. So, you can tell that the device is compact, and it only weighs about 129 grams.

It has 8 MB USB flash disc memory, so as long as the device stays connected through a micro USB, it will run.

PROS

  • 1000 mAh battery
  • Four-channel output
  • Can process analog signals
  • 3-inch display
  • 400 X 240 resolution
  • Compact and lightweight

CONS

  • It has trouble processing higher frequencies

Buy on Amazon


8. Tektronix TBS1052B Oscilloscope

Tektronix TBS1000B Series, 2 Channel, 30 MHz to 200 MHz, 1GS/s to 2GS/s, Digital Oscilloscopes, 5 Year Tektronix Warranty

Even though oscilloscopes have excellent features, sometimes, the engine can create unwanted noise. As a result, the audio oscilloscopes can misinterpret signals. Even regular oscilloscopes can face that problem.

So, if you want a tool that works quietly and maintains a noise-less floor, then purchase the TBS1052B by Tektronix. This device does not have any internal fans. Hence the origin of the noise is gone.

The result you will get is a noiseless machine. However, with overuse, this model can heat up quickly. But since it has dual channels, the processing does not take long. So, you can avoid overworking the machine, which can result in zero heat emission.

Moreover, the rate of sampling per channel is 2.5 Kpts, and the overall sampling rate is 2GS/s. So, the processing unit of this machine is fantastic. And the result shows on the luxurious 7-inch display.

It is not only wide but also has TFT display and color receptors. The resolution is 800 X 480 pixels, and you can even zoom! Thus it will be a party of waves on the screen.

As for other features, it has limit-testing features, FFT functions, several math modes, and trend-plot testing. Besides that, you get 34 automated measurements that extend to dual windows.

PROS

  • 2.5 Kpts rates per channel
  • 7-inch TFT display
  • 34 automated measurements
  • Trend-plot compatible
  • 6-digit frequency counter
  • 2GS/s sampling rate
  • 800 X 480-pixel resolution
  • Zooming feature

CONS

  • Has no cooling fan

Buy on Amazon


9. Siglent SDS1104X-E 100Mhz

Siglent SDS1104X-E 100Mhz digital oscilloscope 4 channels standard decoder

Often oscilloscopes leave a lot of guesswork for the users. Of course, experts can read and understand what the display is showing, but for common people, it becomes a problem. Even some reputed brands have models that are difficult to understand.

So, if you want an oscilloscope that will do most of the work for you, choose the SDS1104X-E by Siglent. It is an excellent choice for beginners, and even professionals will get their money’s worth.

Since this model has a decoder, it will display some form of interpretation after the signal reading. So, besides forming waves through signal sampling, it will also decode the signal. Meaning you will understand where the problem is and what frequency will be best.

This model will be a treat for a professional as well as it has 100 MHz bandwidth and four different channels to accompany the width. Each channel only allows a series signal, and the sampling rate is 1 GSa/s.

Another incentive for the professionals will be WiFi connectivity. So, you can work instantaneously. The beginners do not have to worry as the device is also compatible with USB cables.

It also has 14 Mpt memory capacity that allows the decoding and processing to be more smooth. The LCD TFT display ties everything by providing sharp visuals and stable images.

PROS

  • 1GSa/s sampling rate
  • Four channels
  • 100 MHz bandwidth
  • Equipped with a standard decoder
  • User-friendly
  • WiFi-enabled

CONS

  • More expensive than other digital oscilloscopes

Buy on Amazon


10. Hantek DSO5102P

Hantek DSO5102P Digital Storage Oscilloscope USB 100MHz 1GSa/s 40K,2 Channel,2CH

An oscilloscope has a lot of factors that make it functional and worth the purchase; among them, having different modes and triggers is one of them. So, if you want to do the most with your oscilloscope and need more functions, then certainly go for a Hantek product.

The DSO5102P by the brand has tons of math functions and language measurements. Hence all you have to do is give commands, and the machine will do the calculations. Besides that, it also provides multiple triggers.

Among them, the most useful triggers are pulse, slope, and overtime. You can even work with video triggers and edge triggers. So, it is a superb device for technicians and engineers.

However, beginners can also have fun with this product as they will get an in-depth guide for all the functions. They will know about the bandwidth, sampling rate, and channels from the guide.

And the model does have a high bandwidth of 100 MHz with dual channels. The sampling rate will also be manageable by both beginners and professionals. To help these factors, the memory depth or recording length is 40K.

As a finishing touch, the 7-inch TFT display makes sure that all the graphs and waves stand out in the monitor. So, you can get clear visuals for deducing and analyzing.

PROS

  • User-friendly
  • Features dual features
  • 100 MHz
  • 7-inch TFT display
  • 40K recording length

CONS

  • The transition among time waves can be gritty

Buy on Amazon


What to Look for in a Best Digital Oscilloscopes

Now that you have a list of some of the digital oscilloscopes, it is time to know more about each feature. Knowing the reason and usage of these features will help you decide.

Bandwidth

The higher the bandwidth, the better the output. So, if you have big projects and multiple signals, then choose a product that has at least 50 to 100 MHz bandwidth. Digital oscilloscopes tend to have more than or equal to 50 MHz anyway.

Size and Structure

You can buy mini oscilloscopes, desktop oscilloscopes, or regular oscilloscopes; the options are endless. So, depending on your work, you can go for any of them. However, you should know that a mini oscilloscope will have slower output, but they will be compact.

Channels

Channels are vital for oscilloscopes. It determines whether you can do two jobs at a time. So, if an oscilloscope has only one channel, it is better to avoid that product. Moreover, some brands will also allow you to process both analog and digital signals. So, you get more versatility with one product.

Sampling Rate

The rate at which the device captures each signal to form a wave is the sampling rate. So, naturally, a higher sampling rate means faster output. However, oscilloscopes that are smaller in size will have a lower sampling rate.

So, if you do not want that, go for regular oscilloscopes. Also, memory capacity determines how fast the sampling happens. If the capacity is more, then the visuals will stay on the monitor for a long time.

Display

Digital oscilloscopes have a range of displays. You can get color displays, trigger displays, and even cursor modes. So, based on your needs, you should purchase the oscilloscope. However, always keep an eye for the resolution. If the screen resolution is terrible, then analyzing will become difficult.

Connectivity

There are multiple ways of connecting the oscilloscope, but wireless modes are LAN or Ethernet. However, these connections can have unwarranted disturbances. On the contrary, you can use USB cables as well.

Frequently Asked Questions

Below are some of the most commonly asked queries regarding digital oscilloscopes:

Can digital oscilloscopes be handheld?

Yes, it can be handheld.

How can I track a wave?

Some brands have monitors with cursors using which you can track.

Can digital oscilloscope function on analog?

No, but some brands do provide analog functionality.

What is the power source for oscilloscopes?

Oscilloscopes run on batteries.

Can I control the frequency input level?

No, the machine will accept frequencies within the given range.

Final Words

There is no denying that digital oscilloscopes can do wonders while designing and fixing circuits. We have also gathered a range of products from being affordable to extremely sophisticated, so you can choose whichever you need. We hope the oscilloscope you purchase can satisfy and fix all errors.

Analog vs Digital Oscilloscope: Review and Comparison

oscilloscope analog vs digital channels

Be it for work, education, or as a hobby, a good oscilloscope is the basis for accurate voltage wave measurements. As companies are exploring and adding different features, it may be difficult for even the expert to make a firm decision.

The first place to start is deciding which version of an oscilloscope to get. We are here to help you make that decision through this analog vs digital oscilloscope comparison.

While some may argue, there is no right answer to which one is better. Everyone has different reasons and opinions. So, we leave it up to you to make the decision at the end.

Analog Oscilloscope

Analogs are the first-ever oscilloscopes to exist. They typically have a CRT or Cathode Ray Tube screen. It displays the waveform and images to help identify the faults in the electronic.

The screen shows the signals in an X and Y axis; with the X-axis representing the waveform and the Y-axis representing the voltage.

Because of this, the screen displays a horizontal pattern of waves. Analog oscilloscopes are cheaper, making them suitable for general people to buy.

They are also typically bulky, although modern analog ones have LCDs and lighter components to make them more portable.

Recommended Analog Oscilloscopes to Buy

While some people may consider analog oscilloscopes to be old, we have listed below some of the best ones that may change your mind.

1. B&K Precision 2160C Analog Oscilloscope

BK Precision 2160C 60 MHz Analog Oscilloscope with Built-in Component Tester and Probes

From a 60-year-old reliable company experienced in the business, this is a great budget oscilloscope. Thanks to its built-in component tester, it is also a great tool for in-circuit troubleshooting.

It has a bandwidth of 60 MHz, which works great for detecting the current in any mechanism, device, circuit, etc. Along with that, its two channels have dual trace operations, allowing you to adjust the device with accuracy.

Besides, its 5 millivolts per division sensitivity makes it possible to amplify any weak signal for proper analysis.

This means it can detect as low as 5 mV per division, where the lowest voltage rate detectable by an oscilloscope is around 2 mV per division.

The device has a calibrated range of 23 for both the main and delayed time base. This is excellent for research, as it provides more accurate results. Furthermore, the x10 magnifier makes the work easier and precise.

This instrument measures around 7 inches in length, 14.2 inches in width, and 14.5 inches in height, making it quite a compact and easy size to carry. It is also not that heavy compared to other oscilloscopes, weighing only 7.8 kilograms.

Furthermore, it has a universal 120v/220v power supply voltage, making it easier for most people to use it in their homes. Besides that, it uses a typical CRT screen for displaying the graphs of electric currents.

PROS

  •  Has two channels with a dual trace operation
  •  Can detect as low as 5 mV per division
  •  The compact size makes it easy to carry
  •  Uses universal power supply voltage
  •  Affordable price

CONS

  •  The screen might be dimmer than normal

Buy on Amazon

2. Tektronix TDS3034C

Tektronix TDS3034C, 300 MHz, 4 Channel, Analog Oscilloscope, 2.5 GS/s Sampling, 3-Year Warranty

If you are looking for something more advanced, then this is it. It has a total of four channels powered by 300 MHz bandwidth. This has a record length of 10 kpts per channel. So, you are getting more advanced triggers.

This makes it a suitable instrument for electronic applications for servicing, repairing, assembly lining, product design, as well as electrical engineering education. The device comes with a real-time sample rate of a maximum of 2.5 GS/s per channel.

Moreover, thanks to its 3600 wfm per second continuous waveform capture rate, it can identify even the smallest of faults in the electronic. This makes it easier to do servicing, or to learn the mechanics.

As a result, it is easier to isolate faults using advanced triggers such as pulse width, video, extended video, edge, runt, pattern, rise or fall time, comm, state, and ALT. This helps to capture and display more detailed waveforms.

Besides, the oscilloscope has USB ports and Ethernet for communication. You can also buy additional ports that come with an optional TDS3GV communication module. The TFT LCD 6.5-inch color screen has a resolution of 640 x 480 pixels.

Furthermore, it has been approved by CE and CSA, along with meeting EN and IEC 61010-1 safety standards. So, you are sure to get your money’s worth with this device! The package also comes with a user manual.

PROS

  •
    Has four channels with 300 MHz bandwidth
  •
    Identifies even the smallest of faults in the electronic
  •
    Suitable for repair, servicing, product design, electrical engineering education, etc.
  •
    Has USB ports and Ethernet for communication
  •
    Approved by CE, CSA and meets EN and IEC 61010-1 safety standards

CONS

  •
    Very expensive

Buy on Amazon

3. REK MOS620CH

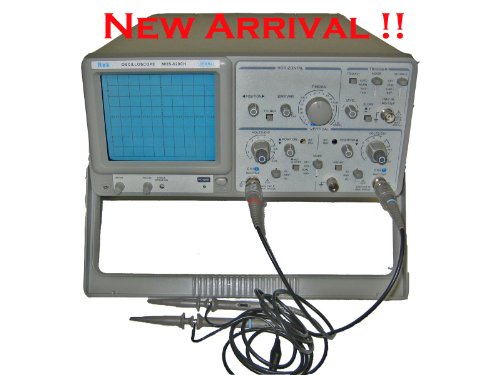

DUAL TRACE ANALOG OSCILLOSCOPE 20MHZ, REK MOS620CH

Although analog oscilloscopes are more economical, the best ones don’t come cheap. But you can still find great ones such as this, with dual trace analog at a very affordable price.

Thus, this is great choice for you if you are looking for a cheap analog oscilloscope. It has two channels, with which you can choose to display either one single channel or dual channel waveforms.

Its vertical axis sensitivity is from 5 mV per division to 5V per division, which means it can detect these current-voltage levels. The bandwidth frequency is DC~20 MHz and DC~40 MHz, with the lowest limit of 10 Hz.

Along with that, the AC has a maximum input coupling of approximately 250 kHz, while the DC has a maximum input voltage of 400 V.

The AC frequency is 1 kHz or lower, and its most effective readout is at 400 V pp. Its common mode rejection ratio is 50:1.

All of these mean you are more than likely to get accurate results. You can also alternate the triggering of two different sources by pushing in the TRIG.ALT switch.

Plus, you can observe the entire vertical picture of a television signal using the TV-V setting; while using the TV-H to monitor the horizontal picture.

Since it is a benchtop analog oscilloscope, it is not the most lightweight or compact in size. It weighs around 23 pounds or 10.4 kilograms. The display size is around 3 to 4.9 inches, with a resolution of 128 x 64 pixels.

PROS

  •
    Has a vertical axis sensitivity from 5 mV per division to 5V per division
  •
    High accuracy rate
  •
    Possible to alternate the triggering of two different sources
  •
    Has a bandwidth frequency of 20 MHz
  •
    Inexpensive deal

CONS

  •
    On the heavier side

Buy on Amazon

Digital Oscilloscope

Between the two versions, digital oscilloscopes are very popular in the market. They usually use TFT LCD screens that convert the waveforms into digital numbers. This makes it possible to analyze a single random signal, resulting in more accuracy.

It also has many advanced functions, which contribute to an easier and more precise data analysis. The device has a bandwidth to limit the amount of frequency that can pass.

Some even support a Wi-Fi connection along with a web server, which means you can control the oscilloscope through your PC or smartphone.

Moreover, if the screen resolution is around 800 x 480 pixels, you can display more than one channel signal, making things more convenient than ever. They can, however, be extremely expensive. But, there are budget-friendly ones as well.

Recommended Digital Oscilloscopes to Buy

Recommended Digital Oscilloscopes to Buy

There are many high-quality digital oscilloscopes in the market. But not everyone can afford a thousand bucks. So, here are some great choices for you within a budget.

4. Siglent Technologies SDS1202X-E

Siglent Technologies SDS1202X-E 200 mhz Digital Oscilloscope 2 Channels, Grey

In just under $400, the SIGLENT’s SDS1000X-E series offers a lot of features and modes you would find only by spending a thousand bucks! Their Super Phosphor oscilloscope is a great start to learning about the device.

It has two modes for capturing waveform rate- normal and sequence. The normal mode has a rate of up to 100,000 wfm per second, whereas the sequence mode offers up to 400,000 wfm per second. It also has lower background noises.

Thanks to the Gate and Zoom measurement, you can analyze any random waveform from the statistics to avoid measurement errors. So, you are getting the most accurate and valid data analysis possible.

Moreover, you can easily access and playback the previous and or latest triggered events using the history function.

This program can store trigger events up to 80,000 multiple memory segments. All of them even have a timestamp, making it easier to navigate through.

Besides that, it comes with a standard free serial decoding function, which includes UART, IIC, CAN, LIN, and SPI. It has up to 4 channels, all of which you can control using Wi-Fi. The bandwidth is around 100 to 200 MHz.

Furthermore, thanks to its embedded web server, you can control the device with your browser anytime. The web page supports the mobile browser as well, so you can control it using both your PC and mobile. It has a large 7-inch 800 x 480 resolution TFT LCD screen.

PROS

  •
    Has lower background noises
  •
    Possible to analyze random waveform to avoid any errors in measurement
  •
    Has a history function to playback previous triggered events
  •
    Comes with a standard free serial decoding function
  •
    Supports Wi-Fi and web browser control

CONS

  •
    Serial number issues

Buy on Amazon

5. Rigol DS1054Z

Rigol DS1054Z Digital Oscilloscopes - Bandwidth: 50 MHz, Channels: 4 Serial Decode Included

Known for being one of the best-selling oscilloscopes globally, this one is worth the money, whether you use it for work, school, or just a hobby. The brand has established a great reputation with the success of this oscilloscope model.

Measuring 13 inches in length, 7 inches in height, and 5 inches in width, it has a compact size. The front has been mostly covered by the screen. But it has a set of buttons on the side for measuring, including menu buttons.

It is lightweight, weighing only 6.6 pounds or 3 kilograms; which also makes it a popular choice. The allover compact size and weight of the device give you the option to carry it with you if necessary. Its bandwidth or frequency is 50 MHz.

Besides, its four analog channels have a maximum waveform capture rate of 300,000 wfm per second. The package also includes a free software bundle that offers multiple useful functions like memory depth upgrade, real-time record of the waveform, advanced triggering, serial bus analysis etc.

A major reason for its popularity and being featured our list, besides all of this, is the price. You are getting all these features and functions under just $400! With a budget price but premium features, it is clearly loved by everyone.

Digital oscilloscopes are well known for their extreme prices; which makes it the ultimate budget digital oscilloscope. Thanks to its 800 x 480 pixels display, you can view all the channels on one single screen.

PROS

  •
    Very lightweight and compact size
  •
    Budget-friendly with premium quality features
  •
    Includes a free software bundle
  •
    Possible to view all the channels on one single screen.
  •
    Has a large screen

CONS

  •
    Few functions come with free trials
  •
    Might make high noises

Buy on Amazon

6. HANMATEK DOS1102

HANMATEK 110mhz Bandwidth DOS1102 Digital Oscilloscope with 2 Channels and Screen 7 inch / 18 cm, TFT-LCD Display, Portable Professional Oscilloscope Kit with 1GS/s Sampling Rate (Not for Medical Use)

Costing just under $300, this digital oscilloscope is a good competitor to the previous budget-friendly one we reviewed. Its slick design and ultra-slim body make it stand out from the rest.

As you can probably already guess, it is also ultra-lightweight, weighing only 3.5 pounds or 1.5 kilograms! Following up on the measurements, it is 11.8 inches in length, 5.9 inches in height, and 2.7 inches in width.

The bandwidth of the device is 110 MHz, with a real-time sampling rate of 1 GSa per second. It also has two channels having a range around 2 ns per division to 1000s per division. And despite all that, it is very quiet; which just seals the deal for some people.

Besides that, it comes with a built-in 6-bit hardware frequency meter. This can measure from 2 Hz to 20 MHz frequency, making it a more versatile oscilloscope for the price. It also has a current measurement function ranging from 100 mA per volt to 1 KA per volt.

Moreover, its 30 different auto measurement functions let you customize the measurement menu to your needs and requirements.

It supports LABVIEW communication and secondary development, along with vertical, horizontal, single, and multi waveform tracking.

Furthermore, the 7-inch display screen is TFT LCD, containing 65535 colors for a clear and bright view. It has an auto cursor function.

Also, it supports multiple languages, including Russian, French, Chinese, English, Japanese, Italian, German, and Spanish.

PROS

  •
    Ultra-slim and lightweight
  •
    Comes with a 6-bit hardware frequency meter built-in
  •
    Has 30 different auto measurement functions
  •
    Supports up to 8 languages
  •
    Budget-friendly

CONS

  •
    Screen capture function may show glitches

Buy on Amazon

Analog Oscilloscope or Digital Oscilloscope?

Although they both work the same way and have the same purpose, we have found some of the major differences between the two types of oscilloscopes that set them apart.

Features and Functions

One of the most apparent factors that is different between them is the number and variety of functions you can get in a digital oscilloscope, compared to an analog.

However, even with fewer measurement functions than a digital one, some analogs give pretty accurate results. Some even work better than digitals.

That being said, people do prefer the digital version more because of its wide number of functions and flexibility.

It also comes with a software bundle, which the company can update to add more features or fix bugs etc. for fewer errors. This is something analog oscilloscopes don’t have.

Waveform

The major difference between the two, and possibly what sets them apart, is the waveform. In case of an analog oscilloscope, you can see the original waveforms.

On the other hand, digital oscilloscopes use analog channels, so they show analog waveform. However, these waveforms get converted into digital numbers via sampling.

Price

Digital oscilloscopes, having more functions, are pricier than analog ones. Most digital oscilloscopes in the market cost around or over $1000.

They also offer the highest quality and accuracy of results. But there are some exceptions, such as the ones on our list.

Likewise, analog oscilloscopes are economical and generally cost way less than the other. There are some costly ones, but you can typically find a good one at a reasonable price. But the digital version, understandably, outdates the analog in the current market.

Conclusion

Although there are significant differences between the two, they are both great in their own way. We hope that we have helped you to make your decision with this analog vs digital oscilloscope article.

Best Oscilloscope Brands

Oscilloscope Brands list

Oscilloscopes, also known as O-scopes, are a kind of electric device which measures waveforms of electricity and shows the results on its screen. These devices are commonly used to analyze the performance of electrical equipment.

It can be a bit tricky to pick one to buy for yourself, so in this article, I will tell you a bit about the best oscilloscope brands as well as my top pick from each of the brands. Let’s dive in, shall we?

4 Best Oscilloscope Brands Overall

First things first, let’s talk about the brands most well known for their oscilloscopes. Try to go for the well known and reputed brands such as Rigol, Siglent, Philips, Tektronix, Atten, Agilent, LeCroy, etcetera when buying an oscilloscope. These brands are well-loved in the community and for good reasons.

In the following list we will talk about some of these brands and one of their best products, So, without further ado, let’s have a look at them!

RIGOL

RIGOL Technologies Inc. was founded in 1998 in Beijing, China. It quickly became a favorite for oscilloscope enthusiasts as it aims to make the best quality and best performance oscilloscopes you can get. Rigol oscilloscopes are equipped with features you may need to complete your work quickly and easily.

The brand also provides a 3-year warranty and 30-day return policy. So, what you are paying for is well worth it.

If you want the best value for your bucks, check out the Rigol DS1102E Oscilloscope. Designed for high performance, this oscilloscope comes with 20 different parameters for measuring electric waves. It also comes with a powerful PC software that you can use with this oscilloscope.

Hanktek

Located in Qingdao, China, in the Whitman industrial city, Hantek Electronic Co. manufactures general electric equipment and specializes in product design, sale, and service. This company spends a lot on its research & development and is always comping up with new innovations and patents. They always strive to innovate.

Hantek’s oscilloscopes are some of the most well-designed and technologically advanced ones out there. My favorite is the Hantek DSO5072P 70 MHz 2 Channel Digital Oscilloscope.

Equipped with a 70 MHZ bandwidth and a large 7-inch LCD color display, this oscilloscope is lightweight and has a built-in help menu, making it very user-friendly. It is more professional and suitable for electronic hobbyists and engineering students.

Pros for this include the built-in menu, built-in algorithm for Fourier analysis, 2 high impedance 10x probes, and the built-in calibration function.

OWON

A subsidiary for the LILLIPUT Group, OWON Technology is based on Canada and specializes in research & application on computer-related and electronic technologies. It was founded in 1993. This company has been producing standardized as well as customized electronic products.

The best offering from OWON is the Owon HDS1021M Series 20 MHz Single Channel Handheld Digital Oscilloscope. This single-channel oscilloscope is equipped with a 3.5-inch color TFT-LCD display. It is designed to be used as a handheld device and is travel friendly.

And the oscilloscope also has a rechargeable lithium-ion battery, which acts as an additional power source besides the AC adapters. Portability and being lightweight while still managing to meet most circuit requirements is a definite pro of this oscilloscope. It is also very affordable.

Tektronix

With experiences of 70+ years, Tektronix is a global brand that makes high-end oscilloscopes that comes with a high price range. Their product innovation makes their oscilloscopes worth the price. My top pick from them is the Tektronix 1052B 50 MHz 2 Channel Digital Oscilloscope.

This oscilloscope is on a higher price range and is equipped with a USB 2.0 interface and a 7-inch color display. It operates at 50 MHz and has 2 channels. The best thing about this is the 5-year warranty, which guarantees quality and durability.

Pros for this include outstanding build quality, 2 color display, video tutorials, intuitive controls, and portability. The price point can be a drawback, but it is worth splurging for.

Conclusion

There you have it, the best oscilloscope brand names as well as our top favorite from each of them. You can always search for other products of the brands mentioned that suit your needs better if the ones we mentioned are not for you.

The brands offer a wide range of products with different functionalities for different purposes.
I hope this article was of help, and thanks for reading!

How to Calculate Frequency from Oscilloscope

Calculate Frequency from Oscilloscope

An oscilloscope is a device used to view the voltage of an electrical component in the form of waves on a screen. It consists of a screen, input ports, and several controls. Oscilloscopes can be either analog or digital.

Most current oscilloscopes will provide you with the readings for voltage and frequency. They usually have other statistical information such as standard deviation and mean.

That said, if your budget oscilloscope does not have these features, you could manually calculate the frequency by yourself.

So, let’s learn how to calculate the frequency from the oscilloscope.

Oscilloscopes and Frequency

Essentially, an oscilloscope visualizes electronic signals (or voltage) passing through a component (such as a wire). It does so by turning the electronic signals into a graph on its display screen, where the voltage is displayed on the vertical axis, and the time is measured on the horizontal axis of the graph.

Most oscilloscopes can display both AC (alternating current) and DC (direct current) waveforms.
The time and voltage units on most oscilloscopes can be adjusted from seconds per division (s/div) to nanoseconds per division (ns/div) and from volts per division (V/div) to microvolts per division (μV/div), respectively.

Measured in hertz, frequency is the number of times oscillating waves pass a certain point on the graph every unit of time (so, for example, five waves per second).

Finding out the frequency of a voltage waveform can be useful for myriad reasons. The most common of them being that, when the frequency of the waveform of a component’s voltage is measured, it can tell us whether the component is working as it should be or if its voltage needs to be fixed.

Calculating Frequency Using an Oscilloscope

Let’s go through the entire process.

Enlarging Display Area

Start by making sure the signal area on your oscilloscope’s display is enlarged.

Measuring Time

Then, measure the time value using the horizontal scale of your oscilloscope, and also by counting the number of divisions (horizontally) between the two ends of a wave, along the Center Horizontal Graticule Line.

In simpler words, this means to count the number of divisions between the peak points of the waves on the waveform of your signal (or a part of the signal’s waveform whose frequency you wish to calculate).

Multiplying

The next step is to multiply this number of horizontal divisions by the time/div value to find the signal’s “period”. And the period of a wave is the amount of time it takes for the wave to complete a full cycle.

Using Formula

Now that you have all your elements, you can use a simple formula to find out the frequency of the waves. This formula will have you divide the value 1 by the period of the wave (or waves) in order to calculate the frequency. So, the formula for this would be: frequency = 1/the period of a wave.

Conclusion

As mentioned before, finding out the frequency of a waveform is only a matter of navigating on a screen in the case of most modern oscilloscopes.

However, if needed, this frequency can also be worked out manually using the few steps mentioned above.

How to Connect an Oscilloscope to a Circuit

how to connect an oscilloscope

Oscilloscopes may seem like daunting devices at first, but try not to let the several knobs and buttons intimidate you.

They are extremely useful in the field of electrical studies and tasks concerning electronics.
When connected to a circuit, a USB oscilloscope graphs out the electrical current running through the circuit onto a screen, and they also provide users with the core information needed to work out a lot of other elements such as amplitude, transient signals, statistics, etc.

This article will be walking you through the process of how to connect an oscilloscope to a circuit so that you can get the information you need.

Circuits and Oscilloscopes

A circuit is essentially a gapless path along which a circulating electric current flows. This path is made up of electrical components such as resistors, capacitors, wires, inductors, loads (such as a bulb), sources (such as batteries), etc.

When a circuit is connected to an oscilloscope, the behavior of the current flowing through the circuit is visualized on the oscilloscope’s screen, which can then be observed, analyzed, and used in the form of information for further calculations and measurements.

The oscilloscope presents the voltage of the circuit as a waveform graph, with time (in seconds, milliseconds, microseconds, or nanoseconds) displayed on the horizontal axis and voltage displayed on the vertical axis of the graph.

Calibrating Your Oscilloscope before Connecting It to the Circuit

Before you connect your oscilloscope to your circuit, you will need to prepare the former so that it works properly with your specific circuit’s signal. This is called ‘calibrating’ the oscilloscope.

Depending on the oscilloscope, you can measure as low as a few millivolts to as high as a few hundred volts of voltage, and similarly, you can visualize pulses of both very short durations and of very long durations.

Scaling

In order to properly see how your circuit’s voltages are changing, you need to scale the voltage and time axes accordingly.

The display of the oscilloscope looks like a simple graph with variable scales for the horizontal and vertical axes.

Estimating

You need to estimate how high and low your peaks and troughs will go and make sure you set the volts/division and time/division knobs appropriately. Ensure that both the maximum and minimum voltages would be visible on the screen at the same time.

Adjusting

Adjust the horizontal scale so that it fits a few periods (that is, the time required by a wave to complete one cycle).

After connecting the circuit, adjust the scale as necessary. The oscilloscope helps to visually test the circuit, so scale it accordingly so that you can see exactly what configuration you need.

Connecting an Oscilloscope to a Circuit

There is very little that goes into the task of connecting a circuit and an oscilloscope. However, this task may seem difficult in the beginning. The following steps should help you walk through the process easily.

First, connect the probe’s ground clip to the circuit’s ground plane. Next, connect the probe tip to the circuit’s signal output port.

Once these two steps are completed, you should be able to see a line appear on the oscilloscope’s screen. This line is known as the waveform of your signal (that is, of the circuit).

This waveform can help you find out not just the voltage of your circuit, but also the frequency, amplifier gain, current, mean, standard deviation, etc.

Conclusion

Learning to operate any new device is a matter of trial and error. However, when working with electronics, it is essential that you keep yourself safe and also conduct necessary and extensive research before performing a new task using your device.

Hence, follow the steps mentioned above when connecting your oscilloscope to a circuit in order to do it properly and safely.

And if you come across any problems while doing the process, give us a shout in the comments or mail us. We’ll try to provide an appropriate solution to your problem in a short time.

Best Endoscope Camera Reviews

best endoscope camera

Gone are the days when using the Best USB Endoscope was an uphill task. They needed expertise, and people in the medical field are the only ones who used them. It was tricky because the DIY, hobbyist, and homeowners had no idea how to use them.

But in recent years, camera technology has made significant innovations making them user-friendly. It is almost a must for a person to have a USB Endoscope Camera because you will need them in your day-to-day activities in your house. Their versatility comes in handy, especially when you need to diagnose problems in those hard places to reach your home.

Throughout our article, we will review the 10 high-rated Endoscopes that are available. We will pinpoint every detail for your perusal. The buying guide, FAQ, and our analysis will give you a clear picture.

Below are the 10 top in the market;

Our 3 Favorite USB Endoscope

Top 10 Best USB Endoscope Review

1. USB Endoscope for Otg Android Phone

USB Endoscope Type C Borescope for OTG Android Phone, Windows PC, MacBook, 5.5 mm 0.21 Inch Inspection Snake Camera Waterproof, 16.4FT Semi-Rigid Cord with 6 LED Lights (16.4 ft)

An amazing USB Endoscope that is used to reach those tiny places around our homes. At 0.21 inch/5.5mm, you will discover that the Camera is ultra-thin.  If you need to expand your eyesight and view, HVAC, toilets, sofa corners, and all the tiny places in your house, then USB Endoscope for Otg Android Phone has all your answers.

More features

Waterproof

When viewing your bathrooms and toilets don’t worry. Do it in confidence because it is waterproof. Go as deep as three meters and look out for those tiny objects in your sanitary area. A Point to note, though, it doesn’t go more than three meters.

Semi-rigid cables

There is no fear of breakages and bending problems when it comes to the cables. If you need to peruse those narrow-ended areas like cylinders, or even pipes, do so. The cables are strong and can withstand a bit of pressure.

LEDs

It beats our understanding because, in dark areas, you are covered. With 6 dimmable LEDs, how can we not fall in love with this piece? You can even turn the light off.

Easy to use

Complicated items are not our thing. With a USB Endoscope for Otg Android Phone, you have all the instructions from the manufacturers. Once you download the app, the installation process is over. But to mention, if you have a Macbook, use the bundled software photo booth. If it is Windows 10, then plug into the USB and look for Camera, then click. In Windows 7 and 8, download an Amcap.

Pros

  • Easy to use
  • Strong cables
  • It can be used in dark places
  • Affordable

Cons

  • It cannot be used with Samsung a5, j3 and iPhone/iPad

Buy on Amazon

2. Industrial Endoscope, SKYBASIC 1080P HD 8mm

Industrial Endoscope 33FT, SKYBASIC 1080P HD 8mm Digital Borescope Camera IP67 Waterproof 4.3 Inch LCD Screen Snake Camera Video Inspection Camera with 6 LED Lights,Semi-Rigid Cable,32GB Card and Tool

Who doesn’t like DIY items? When it comes to this Industrial Endoscope, you buy it and operate it soon as you plug it in. No need for Wi-Fi. Neither do you need to use your great phone for any connection. It operates as good as perfect without all that.

Other features

1P67 waterproof

At times, you need to work even in the weirdest environments and wonder how you can reach those points. With the lens and lamps of the camera being waterproof, you are sure you will view those corners with class.

LED lights

You can view the darkest places too. The 6 LEDs takes care of that feature. You can get clear and precise images from a distance as far as 198 inches. The cables are semi-rigid and very flexible. How about the battery? It can last as long as four hours.

Wide application

What more can you yearn for when you can inspect several places with SKYBASIC Industrial? If you are in the car industry, no need to worry, you can inspect those areas with no limitations. For mechanics, the SKYBASIC Industrial doesn’t disappoint. Other inspections like household appliances, pipe repairs, sewer inspection, and overall house maintenance make it a catch.

LCD Screen

It is 4.3 inch, full colour that allows you to view your photos and videos instantly. The camera is a 1080P HD Endoscope suitable for viewing HD photos.

Pros

  • Easy to use
  • Waterproof
  • Clear camera
  • The quality is good

Cons

  • Some complained about the length of the camera tip

Buy on Amazon

3. USB Snake Inspection Camera, Fantronics 2.0 MP

USB Snake Inspection Camera,Fantronics 2.0 MP IP67 Waterproof USB C Borescope,Type-C Scope Camera with 8 Adjustable LED Lights for (16.4ft) Samsung Galaxy S9/S8, Google pixel, Nexus 6p(Not for iPhone)

USB snake Fantronics is an amazing endoscope that supports most computers but discriminates the iPhone users. Phones like Samsung, Sony, and HTC are supported and (USB C) smartphones with OTG and USB BVC function. Before taking this USB endoscope home, a word of advice is that install the free app, USB OTG CHECKER, to check the OTG.

Other features

IP67 Waterproof; despite all the challenges, especially for iPhone users, it can view different places without problems. With this USB endoscope inspection camera, you are sure your sewers, narrow pipes, and bathrooms are inspected with minimal hassle. How about the LED lights? It’s a whooping 8pc adjustable, which makes it easier to view in dark areas.

Semi-rigid cables; it has a 5M rigid cable that allows you to turn to 360 degrees without feeling intimidated. When you use something flexible and strong, you feel good. That what this USB snake, Frantronics camera makes you feel.

Camera; it has a fantastic camera with great features. It can capture images or videos with 640 X 480, 1280 X 720 resolutions. That means all your photos and videos are top-notch, making any problem diagnosis easy.

Pros

  • It has a good camera
  • The cables are strong and flexible
  • It is waterproof
  • It supports most of the computers

Cons

  • It doesn’t support iPhones

Buy on Amazon

4. Wireless Endoscope Camera, NIDAGE

Wireless Endoscope Camera, NIDAGE WiFi 5.5mm 1080P HD Borescope Inspection Camera for iPhone Android, 2MP Semi-Rigid Snake Camera for Inspecting Motor Engine Sewer Pipe Vehicle (33FT)

When you think of a NIDAGE Endoscope, what comes to your mind is whether it is waterproof. It is a requirement because, in most cases, you use them to look down to that drainage system. You want to diagnose problems with minimal hassle, and this endoscope doesn’t disappoint. With its advanced technology, it has a 5.5mm probe. Thus it can reach areas that are hard to reach using outdated endoscopes.

More features

Long cable

It sucks when you want to reach the furthest corners, but you can’t. What if I tell you it has a cable as long as 33ft? Excited? I know you are. The cable can go as far as 8 inches deep.

Versatile

The good news is that it is compatible with Android and iPhones. That makes it a must-have for iPhone lovers who need it. NIDA endoscope will see under the walls, sewers, furnaces, pistons, among others.

Semi-rigid cables

You can do much more with flexible cables, yet they don’t break. While assessing those narrow ends, you can dig deeper and diagnose the problem without worrying about the cables.

LED Lights; with 6 adjustable LED lights, the darkest corners are accessible.

Battery; when you charge the battery for around 30 minutes, you are sure of an hours working period.

Pros

  • The picture quality is very good
  • It has long cables
  • The pricing is good
  • It is waterproof

Cons

  • Set up takes a bit of time

Buy on Amazon

5. USB Endoscope Camera, DEPSTECH 720P

USB Endoscope Camera, DEPSTECH 720P IP67 Waterproof Borescope, 5.5mm Snake Inspection Camera, Type-C Scope Camera with 16.5ft Semi-Rigid Cable, 6 LED Lights, Compatible with OTG Android Phone, PC

DEPSTECH is a special endoscope with features to look forward to. The fact that it connects with android, MacBook and Windows, makes it fantastic. The setup is a walk in the park because you can do it on your own if you follow all the instructions given.

Other notable features

Waterproof

It beats this mark of being waterproof compliance. Through those sewers, its camera can see without getting damaged. Even if the places are hard to reach, don’t worry. It can see through it all.

Semi-rigid cables

When you want to go into those deep sewers, you need snake-like strong cables to do so. With DEPSTECH you are sure of that and more.

Camera

What beats the power of a good camera? It has a 5.0mp camera which can shoot around 2592*1944p. The photos are clear, and the videos are delicious. Did I mention that the camera is 0.33mm ultra-thin? That means it can go the narrowest place you can think of, and it has one of the best micro USB inspection cameras.

LED Lights

Are 6 adjustable lights that penetrate through to help you access the darkest parts. You can adjust them to your liking and reap the benefits.

Pros

  • The camera captures clear photos
  • It is cost-friendly
  • It is versatile
  • You can use it with an Android 5

Cons

  • It is not compatible with iPhones

Buy on Amazon

6. USB Snake Inspection Camera, 2.0 Mp

USB Snake Inspection Camera, 2.0 Mp Ip67 Waterproof USB C Borescope, Type-c Scope Camera with 6 Adjustable Led Lights Endoscope Camera for Android, Pc's Endoscope Camera

Sometimes you have a car and unable to see the inside of that car with your naked eyes. Of course, you need to diagnose the cause of the problem, and the USB snake Inspection Camera does that perfectly well. With its camera that has a 7mm head, you are sure to view those places.

Other notable features

Versatile

It is not limited to the car only because you can use it around your home. If you need to inspect under your bed, through the walls, bathrooms, sewers, etc., this is an excellent USB for that.

Cables

With a snake-like cable means that you can penetrate with snake movements. So that corner that seems unreachable, the USB reaches comfortably. Again, the cable is semi-rigid taking a 360-degree rotation.

The camera

Is waterproof, allowing you to take those snapshots without the care in the world. The resolution of the camera is 640 x 480, 1280×720. How about the videos? They are clear, smooth and precise.

LED Lights

Unlike the other USB cameras with 6 LED lights, it has 6 adjustable LED light. That makes it fantastic USB Snake Inspection Camera, to explore those dark corners.

Pros

  • It has a clear camera
  • It has 6 adjustable LED lights
  • You can use it on most Android phone
  • It is used on PC

Cons

  • It is not iPhone compatible

Buy on Amazon

7. 3rd Generation USB Borescope

3rd Generation USB Borescope, Teslong Auto Focus Endoscope Camera with 5.0 Megapixels FHD Micro Inspection Camera, Waterproof Semi-Rigid Snake Cable, Multifunction Soldering Camera(5m/16ft)

What comes to your mind when 3rd generation is mentioned? Maybe you think it’s a product from 3rd generation or something. Anyway, this is an endoscope that has managed to do things differently. They have upgraded their micro inspection cameras, and they are doing a good job. With that upgrade, you can bring an object closer through their camera. In other words, it is an “auto focus technology.”

More features

Cable

It’s a long one around 5 meters that is semi-rigid. It is also waterproof so that you can dig deeper into sewers, bathrooms, and toilets. You can’t ignore the durability bit because the wire serves you well.

Camera

3rd generation has a good camera that takes clear photos. The HD USB endoscope camera is way better than the standard cameras because it is 2.5 times clear effect. A standard camera has around 1080p; this one is 2.5 times better. The fact that it is a built-in “5 megapixel ultra HD module” explains it all. With such, you can see details like plaque on the wall, rust in the pipes, and even some carbon residue in the engines. It captures all those details.

Compatibility

Android phones that have OTG functions are compatible with this Micro-USB Endoscope. If you have a MacBook or a PC, you can still use it. In addition to all those fantastic features, you get a TESLONG, inspection cameras, and other accessories like a hook, magnet to name a few.

Pros

  • The quality of the photos and videos is at par
  • It is easy to use
  • It comes with great accessories
  • It has LED lights

Cons

  • It is not compatible with iPhones

Buy on Amazon

8. Cubyee Premium Borescope

Cubyee Premium Borescope, [5.5mm 6 LED 1M/3.3FT Length] USB Micro Data Cable Endoscope, Waterproof Inspection Camera for Andorid Phone/PC

It is a very neat and friendly endoscope that can be used at home and in industries. The fact that it is versatile makes it a great piece to have, and the camera is excellent. Those who are in-vehicle, petroleum, aviation, space, construction industries can use it. Interestingly, it has a criminal and custom detector, which is helpful for the people in that department.

Size; it is small and very light. It is a product that you can carry everywhere and use without much hassle.

IP67 Waterproof

When perusing those high ends; you don’t have to worry about destroying the camera.  It has a waterproof USB endoscope camera that has a head view of 5.5mm.

Lights

With its LED lights, you are comfortable viewing dark places. It has 6 adjustable white LEDs with a length of 1M/3.3FT. That means they are very bright.

Compatibility

The Cubyee Premium Borescope is compatible with an Android System Phone that is above 4.0 and supports OTG.  Unfortunately, it does not support the iOs system.

Pros

  • Waterproof
  • It’s compatible with several apps
  • Easy to use

Cons

  • Some complained about the quality of the Micro USB Camera

Buy on Amazon

9. LZHZJOY Endoscope Camera

LZHZJOY Endoscope Camera,Car Inspection Camera, Android and iOS Phones/Tablets Home Inspection Camera USB Endoscope Camera 2 Million HD IP67 Waterproof (11.5FT)

LZHZJOY Endoscope Camera is a fantastic endoscope that has brought smiles to iPhone lovers. Most of the Endoscope doesn’t support iOs, so you can imagine how this great endoscope saves the day.  Using it is very simple, you download the App, follow the instructions, and there you go, it up and running.

More features

Wi-Fi

Can be used without the Wi-Fi, so good news for homeowners. Their USB endoscope camera android doesn’t have to be connected to the Wi-Fi. So if you want to inspect your sewers, sofa corners, and other place is in your house, you are sorted.

Camera

Nothing beats the quality of a good camera. The LZHZJOY Endoscope camera has around five different resolutions that make it great for people in the vehicle industry. You can easily do your car inspections focusing on about 2.4 inches.

The cable; is semi-rigid and waterproof. The camera is 8mm in diameter that means it can be comfortable,

Design

With the snake movement kind of design, the cable maneuvers around your house, reaching every corner. You can comfortably use it in dark places and water-prone areas.

Pros

  • iPhone compatible
  • It has a long-lasting battery
  • It doesn’t consume much power

Cons

  • Some complained of the camera
  • Some complaints about the lights

Buy on Amazon

10. 5.0MP 50FT USB Borescope Endoscope Camera

5.0MP 50FT USB Borescope Endoscope Camera, DESKOP Sewer Snake Inspection Camera with 6 Adjustable LED Lights IP67 Waterproof Semi-Rigid Cable for Pipe Drain Automotive Duct Home, Hook Magnet Mirror

It is known to have a camera clearer than most brands in the market. You may ask why it is that. It is based on facts, though. The resolution of the camera goes up to 2592*1944, so that’s why you have photos and videos that are clear.

More features

Distance; 5 .0MP 50FT USB Borescope doesn’t suck when it comes to inspecting long distances. It goes up 16 inches, and the focal length is impressive.

Usage; it is straightforward to use this endoscope. You need to plug it into your computer and install the software. It will work well without much hassle.

Compatibility; sadly, it doesn’t support MacBook, iPhone, Android, Tablets, and iPads. But if you have Windows XP, 8, Vista, and Windows 10, you are good to go.

Cables; just like most of the endoscopes, its cable is semi-rigid and flexible. It is 50 Ft, and in addition to that, the Endoscopes come with hooks, magnets, and side mirrors. It doesn’t bend, to when you need to peruse those hard places, go ahead.

Lights; it comes with 6 adjustable LED lights making your journey to darker places effortless. Remember it is ip67 waterproof, so don’t limit it to only dry locations. Explore the wet areas too.

Pros

  • Easy to use
  • The quality is good
  • The length of the cable is impressive

Cons

  • It doesn’t support some gadgets

Buy on Amazon

Best USB Endoscope Buying Guide

Now that you have decided to buy a USB endoscope, you need to know what to look for on the Best USB Endoscope available. There are various things you can consider, and we are going to look at each of them.

Camera’s Quality

When you buy your USB endoscope, you must look at the specifications of the camera. Most of us want that camera with full-HD video, and this can be costly. With a camera that has 1080p, the quality of photos and videos is good. But again, if you can’t get that, one with 780p still works perfectly well. So as you shop, ensure you get those details correct.

How compatible is your USB?

It’s crucial to get USB cameras that are compatible with several gadgets. We have discussed different USB Endoscopes models and discovered that some support, Androids, Windows, PCs, etc. So while doing your shopping, consider the compatibility factor. That should also be influenced by where youare going to work. For example, if your work is outside the house, the USB’s compatible with phones are suitable. Do thorough research to understand that bit.

Battery

Some Endoscopes use batteries. In that case, consider if your Endoscope uses a lot of power. That will influence the choice of Endoscope you will get. For example, if you intend to work for many hours, you can get a battery with 2000 milliamp hours or more. But if you don’t work for long hours, you can take one with less.

The length of the cable

It’s equally important to consider the length of the cable. While looking at the size, don’t ignore the flexibility. Yeah, most people think that the longer the cable, the better the results. It might be accurate, but pick an Endoscope with the length you feel is needed for your work.

How Do I Install An Endoscope Camera On My Computer?

It doesn’t take a lot of time to download and install an endoscope camera for your PC. There are two methods to do that, and they all work effortlessly. If you follow these steps without missing any, you should have the camera on your PC within no time.

Below is a step to step you can follow to install the endoscope camera on PC. NB: You will need an Android emulator like Bluestacks or an LDPlayer.

Installing through the Bluestack

Follow these steps;

  • The first step is to download Bluestack and install it on your PC.
  • Next is to open the Bluestacks emulator and through Google account login.
  • After you login into your Google account, open the endoscope camera from Google Play Store.
  • Once you are through with that, click install. It will install and ready for use.

Alternatively, in the instance that you don’t find the app on the Google Play Store, you install it by running the camera on the APK file. That should work well.

How to install through LDPlayer

Follow these steps

  • The first step is to download the LDPlayer on your PC. Once you are through with that, install it. Ensure it is working well before proceeding.
  • The second step is launching. This should take you a few minutes. Since the installation has been successful, launch the LDPlayer.
  • Next, log in to your Google account.
  • After that, find the LDPlayer store and search Download Blazer.
  • There you will get the Endoscope Camera, and you can install it from there.

There you go, if you followed those few pointers your endoscope camera should be up and running.

What is the difference between a borescope and an endoscope?

 Let’s analyze the difference between boroscopes and endoscopes using a table

BorescopesEndoscopes
They can maneuver pretty well but are not flexible. That makes working with them a bit hard, especially when you want to reach those rough terrains.Endoscopes have very high maneuverability ability. They can go through tough places and their flexibility makes that possible.
They have powerful lighting, which is built-in. With this kind of lighting, you can see inside most machinery or whatever you are working on.They don’t need powerful lighting. They can still work well even when the lighting is poor. Though they are installed with lighting features, it doesn’t mean when the light is dim; they dim too.
They are not cheap. But when you compare the prices of endoscopes, you will realize that these are more affordable.They are a bit pricey. Many factors determine the pricing, though, but you have to cough some suitable chucks to get an endoscope, especially with that high head camera.
They are used in many places, including vehicle industries, aerospace technicians.                 They are primarily used in the medical field. If the surgeons want to see what is going inside your body, they can send the camera and diagnose.

FAQ: Best USB Endoscope

Q: How do you make an endoscope?

A: To make an endoscope, you will need a USB endoscope camera. Plug the USB into the computer. Then once you plug in, the camera should be on. Through the computer, you will be able to see images once you move the camera around. If you look through your palm of your hands, eyes, you can see those small details that we can’t see with our naked eyes.

Q: What is the best endoscope app for Android?

A: USB Endoscope Camera, DEPSTECH 720P for Android. It allows you to see beyond those tiny things in your sofa corners, bathroom and sewers. Its camera is ultra-thin at 0.33 mm that means it can go through narrow places. Since it is waterproof, you are sure it can handle anything related to water. On top of that, the LED lights help you see through the dark places.

Q: What is a Wi-Fi endoscope used for?

A: It is used to see places where a standard smartphone camera can’t see. The good thing is that it is connected through Wi-Fi, so there is no need to include another compatible app. You connect it with your Wi-Fi and view whatever you want with minimal hassle. The camera is waterproof meaning it can go through sewers, bathrooms as well as inspect motor vehicles, to name a few.

Are cheap endoscopes any good?

They are not bad. If they have a camera that is standard at 1080p, then these endoscopes are an excellent bargain for the money. With such a camera, you can have any work done without severe problems. But a point to note is that they are not durable. So don’t expect them to serve you for long.

Our wrap up

We believe that the Best USB Endoscopes that have we have discussed in our article are good. The fact that one has more or different features doesn’t make it better. What makes USB endoscope good is the ability to perform the tasks it is needed to complete. Apart from that, the components, compatible apps, pricing, durability, and all that should help you make an informed decision. As always, take your time to go through each review and decide what works for you. That is the only way you will be able to know their performances. With the guidelines that we have crafted, pick yours and enjoy your product.
